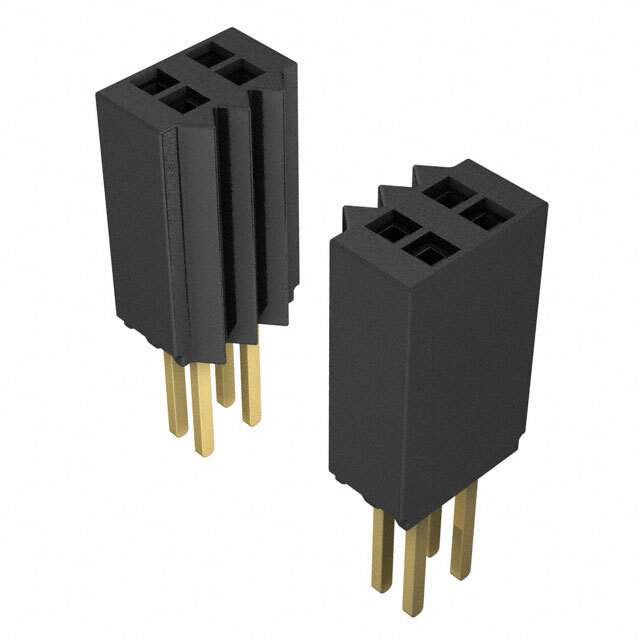

SMS-105-02-G-D

Name: SMS-105-02-G-D
Brand: Samtec Inc.
SKU: 1292505
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SMS-105-02-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SMS-105-02-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SMS
Package	Bulk
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Contact Length - Post	0.190" (4.83mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Gold
Current Rating (Amps)	5A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SMS-105
Other Names	Q3402644
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292505-SMS-105-02-G-D
Ultra Librarian 3D Model	Ultra Librarian SMS-105-02-G-D CAD Model

Alternative Products

Description

The SMS series connector from Samtec Inc. is a rectangular connector with a receptacle type connector that has a forked contact type.

Connector Type: Receptacle
Contact Type: Forked
Positions: 10
Positions Loaded: All
Pitch-Mating: 0.050 inches (1.27mm)
Contact Material: Phosphor Bronze
Contact Finish-Mating: Gold
Contact Finish-Mating Thickness: 10.0µin (0.25µm)
Mounting Type: Through Hole
Row Spacing-Mating: 0.100 inches (2.54mm)
Temperature Range: -55°C to 125°C
Style: Board-to-Board
