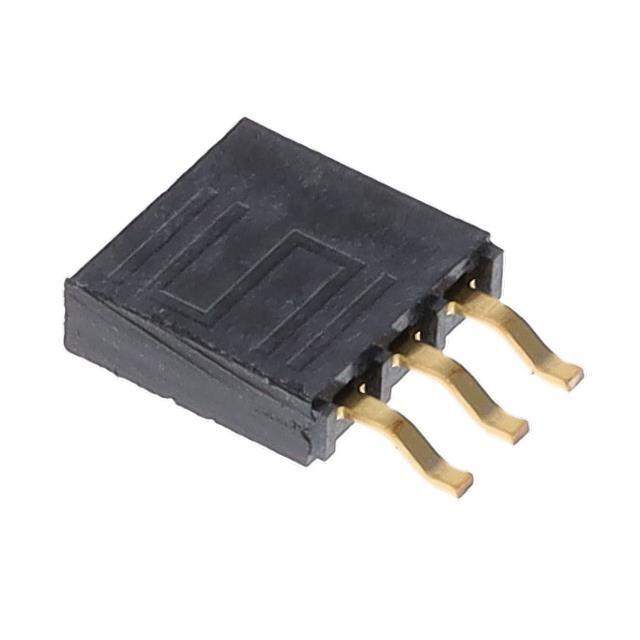

SMH-103-02-G-S Real Image
Same model may have multiple batches, images only for reference.

SMH-103-02-G-S

Part No SMH-103-02-G-S
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SMH-103-02-G-S Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SMH
Package Bulk
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 3
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 1
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 20.0µin (0.51µm)
Insulation Color Black
Insulation Height 0.095" (2.41mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post Flash
Base Product Number SMH-103
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292524-SMH-103-02-G-S
Ultra Librarian 3D Model Ultra Librarian SMH-103-02-G-S CAD Model

Description

The SMH series female socket connector is a reliable and efficient option for board-to-board connections.

  • Series: SMH
  • Connector Type: Female socket connector
  • Application: Board-to-board Connections
  • Positions: Three
  • Rows: One
  • Fastening Type: Push-pull
  • Contact Type: Forked
  • Termination Method: Solder
  • Voltage: Unspecified
  • Contact Material: Phosphor bronze
  • Insulation Material: Liquid crystal polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Insulation Color: Black
  • Pitch Mating: 0.100 inch (2.54mm)
  • Contact Finish Mating: Gold with a thickness of 20.0μin (0.51μm)
  • Contact Finish Post: Flash
  • Operating Temperature: -55°C to 125°C
