Same model may have multiple batches, images only for reference.

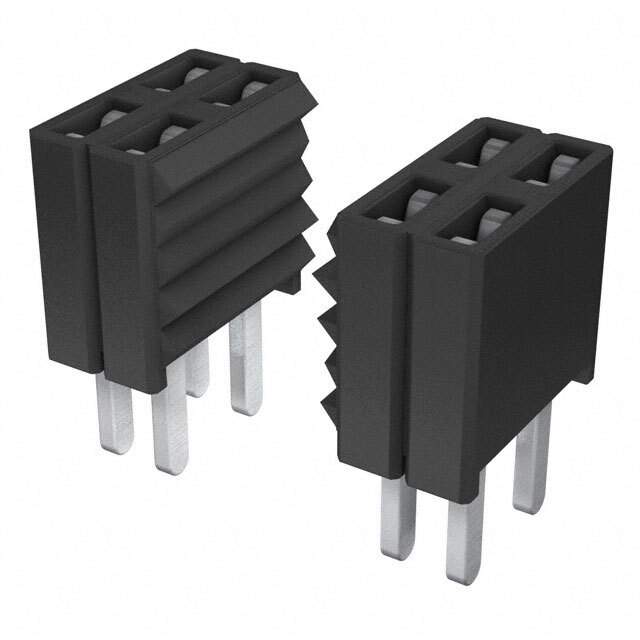

SLM-110-01-S-D Real Image
Same model may have multiple batches, images only for reference.

SLM-110-01-S-D

Part No SLM-110-01-S-D
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SLM-110-01-S-D Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SLM
Package Tube
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 20
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.180" (4.57mm)
Contact Length - Post 0.115" (2.92mm)
Temperature Range - Operating -55°C ~ 125°C
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Rectangular
Contact Material Phosphor Bronze
Base Product Number SLM-110
Other Names SLM-110-01-S-D,SAM15781
Standard Package 45
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292682-SLM-110-01-S-D
Ultra Librarian 3D Model Ultra Librarian SLM-110-01-S-D CAD Model

Description

The SLM series SLM-110-01-S-D connector is a high-performance, board-to-board connector designed for use in various applications.

  • Positions: 20
  • Positions Loaded: All
  • Connector Type: Receptacle
  • Contact Type: Forked
  • Pitch-Mating: 0.050" (1.27mm)
  • Contact Finish-Mating: Gold
  • Contact Finish-Mating Thickness: 30.0µin (0.76µm)
  • Fastening Type: Push-pull
  • Mounting Type: Through-hole
  • Contact Material: Phosphor bronze
  • Insulation Material: Liquid crystal polymer (LCP)
  • Insulation Height: 0.180" (4.57mm)
  • Insulation Color: Black
  • Contact Length-Post: 0.115" (2.92mm)
  • Contact Shape: Rectangular
  • Operating Temperature Range: -55°C ~ 125°C
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
