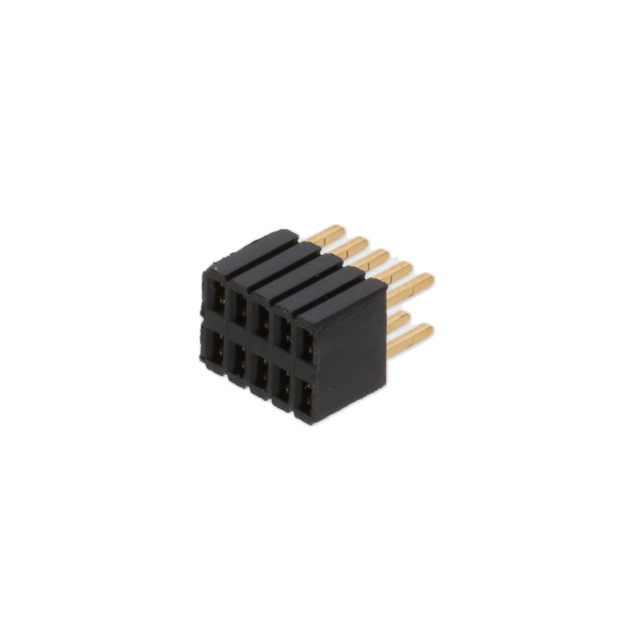

Same model may have multiple batches, images only for reference.

SLM-105-01-G-D

Name: SLM-105-01-G-D
Brand: Samtec Inc.
SKU: 1292693
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SLM-105-01-G-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SLM-105-01-G-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SLM
Package	Tube
Connector Type	Receptacle
Contact Type	Forked
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.050" (1.27mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	20.0µin (0.51µm)
Insulation Color	Black
Insulation Height	0.180" (4.57mm)
Contact Length - Post	0.115" (2.92mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Gold
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Rectangular
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	3.00µin (0.076µm)
Base Product Number	SLM-105
Other Names	SAM15115,SLM-105-01-G-D,Q8942537
Standard Package	86
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292693-SLM-105-01-G-D
Ultra Librarian 3D Model	Ultra Librarian SLM-105-01-G-D CAD Model

Alternative Products

Description

The SLM series receptacle connector is a rectangular connector that is ideal for use in board-to-board applications.

Pitch: 0.050 inches
Positions: 10
Rows: Two rows
Contact Type: Forked
Termination: Solder
Insulation Material: Liquid crystal polymer (LCP)
Insulation Color: Black
Contact Material: Phosphor bronze
Contact Finish: Gold
Contact Finish Thickness Mating: 20.0μin
Contact Finish Thickness Post: 3.00μin
Contact Length: 0.115 inches
Insulation Height: 0.180 inches
Operating Temperatures: -55°C to 125°C
Package: Tube
Standard Package: 86 connectors
ECCN: EAR99 compliant
REACH: Unaffected by REACH
