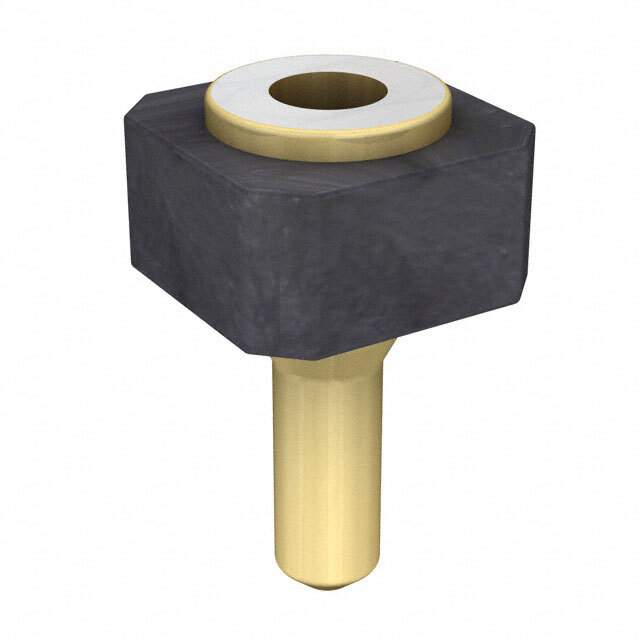

Same model may have multiple batches, images only for reference.

SL-101-G-19

Name: SL-101-G-19
Brand: Samtec Inc.
SKU: 1292860
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SL-101-G-19
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SL-101-G-19 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SL
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	1
Number of Positions Loaded	All
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.083" (2.10mm)
Contact Length - Post	0.082" (2.08mm)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	SL-101
Other Names	SAM11781,SL-101-G-19
Standard Package	1
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292860-SL-101-G-19
Ultra Librarian 3D Model	Ultra Librarian SL-101-G-19 CAD Model

Alternative Products

Description

The SL-101-G-19 is a receptacle connector that belongs to the SL series of Samtec Inc.

Type: Board-to-board
Contact Shape: Circular
Row Count: Single
Positions Loaded: One
Contact Material: Beryllium copper
Contact Finish: Gold (10.0µin (0.25µm) for mating)
Termination Type: Solder
Mounting Style: Through-hole
Insulation Material: Liquid crystal polymer (LCP)
Insulation Height: 0.083" (2.10mm)
Operating Temperature Range: -55°C to 125°C
REACH: Affected
ECCN: EAR99
Packaging: Bulk
Standard Package: 1
