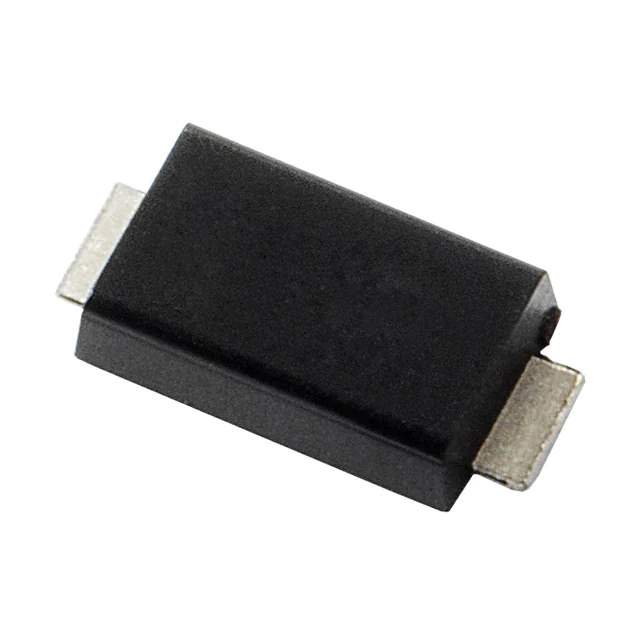

TPSMA6L26A Real Image
Same model may have multiple batches, images only for reference.

TPSMA6L26A

Part No TPSMA6L26A
Manufacturer Littelfuse Inc.
Catalog TVS - Diodes
Description TVS DIODE 26VWM 42.1VC DO221AC
Datasheet
TPSMA6L26A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Littelfuse Inc.
Series Automotive, AEC-Q101, TPSMA6L
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 26V
Voltage - Breakdown (Min) 28.9V
Voltage - Clamping (Max) @ Ipp 42.1V
Current - Peak Pulse (10/1000µs) 14.3A
Power - Peak Pulse 600W
Power Line Protection No
Applications Automotive
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case DO-221AC, SMA Flat Leads
Supplier Device Package DO-221AC
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
California Prop 65 Warning Information
Win Source Part Number 850538-TPSMA6L26A
Ultra Librarian 3D Model Ultra Librarian TPSMA6L26A CAD Model

Description

The 850538-TPSMA6L26A is a TVS Diode circuit protection component from Littelfuse Inc. It is part of the Automotive, AEC-Q101, TPSMA6L series and is designed as a Zener type diode.

  • Series: TPSMA6L
  • Application: Automotive, AEC-Q101
  • Packaging: Tape & Reel (3,000 pcs)
  • Type: Zener
  • Reverse Standoff Voltage: 26V
  • Breakdown Voltage: 28.9V
  • Clamping Voltage: 42.1V @ Peak Pulse Current
  • Power Rating: 600W
  • Channels: 1 (Unidirectional)
  • Peak Pulse Current: 14.3A
  • Mounting: Surface Mount
  • Package: DO-221AC, SMA Flat Leads
  • Operating Temperature: -50°C to 150°C
  • Status: Active
