Same model may have multiple batches, images only for reference.

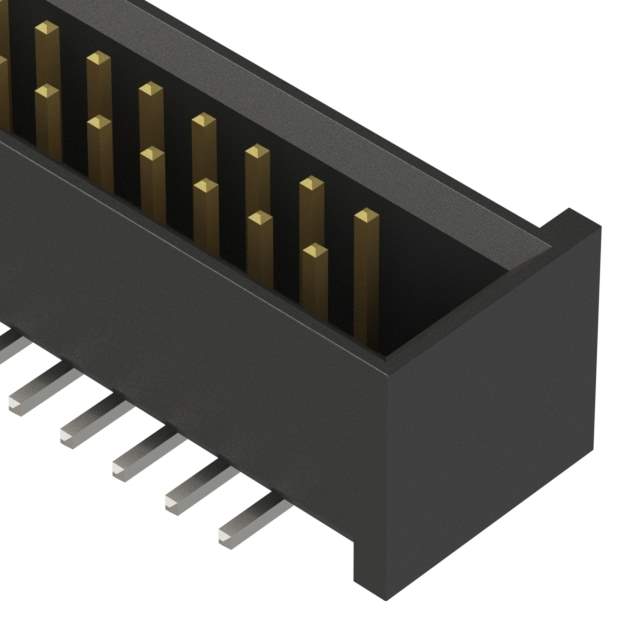

SHF-109-01-L-D-SM Real Image
Same model may have multiple batches, images only for reference.

SHF-109-01-L-D-SM

Part No SHF-109-01-L-D-SM
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SHF-109-01-L-D-SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series SHF
Package Tube
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 18
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.120" (3.05mm)
Insulation Height 0.210" (5.33mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number SHF-109
Standard Package 32
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293140-SHF-109-01-L-D-SM
Ultra Librarian 3D Model Ultra Librarian SHF-109-01-L-D-SM CAD Model

Description

The SHF series of rectangular connectors from Samtec Inc. offers a wide range of features that make it an ideal choice for board to cable/wire connections.

  • Type: Header
  • Positions Loaded: 18
  • Rows: Two
  • Pitch: 0.050 inches (1.27mm)
  • Contact Shape: Square
  • Maximum Current Rating: 3A
  • Voltage Rating: -V
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Contact Material: Phosphor Bronze
  • Temperature Range: -55°C to 125°C
  • Flammability Rating: UL94 V-0
  • Mounting Type: Surface Mount, Right Angle
  • Packaging: Tube
  • Contact Finish: Gold with a thickness of 10.0µin (0.25µm) for mating and tin for post
  • Row Spacing: 0.050 inches (1.27mm)
  • Insulation Height: 0.210 inches (5.33mm)
