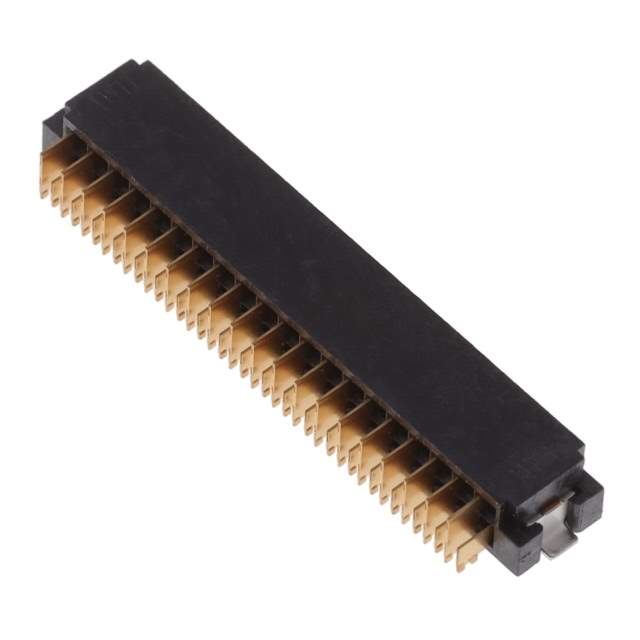

SFMH-120-02-L-D-WT Real Image
Same model may have multiple batches, images only for reference.

SFMH-120-02-L-D-WT

Part No SFMH-120-02-L-D-WT
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SFMH-120-02-L-D-WT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series Tiger Eye™ SFMH
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 40
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.135" (3.43mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Solder Retention
Current Rating (Amps) 2.6A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post Flash
Base Product Number SFMH-120
Standard Package 20
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285464-SFMH-120-02-L-D-WT
Ultra Librarian 3D Model Ultra Librarian SFMH-120-02-L-D-WT CAD Model

Description

The Samtec Inc. SFMH-120-02-L-D-WT is a Tiger Eye™ SFMH series connector with 40 positions and a pitch of 0.050 inches.

  • Positions: 40
  • Pitch: 0.050 inches
  • Solder Retention: Yes
  • Connector Type: Receptacle
  • Contact Type: Female Socket
  • Positions Loaded: All
  • Rows: Two
  • Fastening Type: Push-Pull
  • Contact Finish (Mating): Gold (10.0 µin)
  • Contact Finish (Post): Flash
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Mounting Type: Surface Mount, Right-Angle
  • Row Spacing: 0.050 inches
  • Temperature Range: -55°C to 125°C
  • Current Rating: 2.6A per contact
