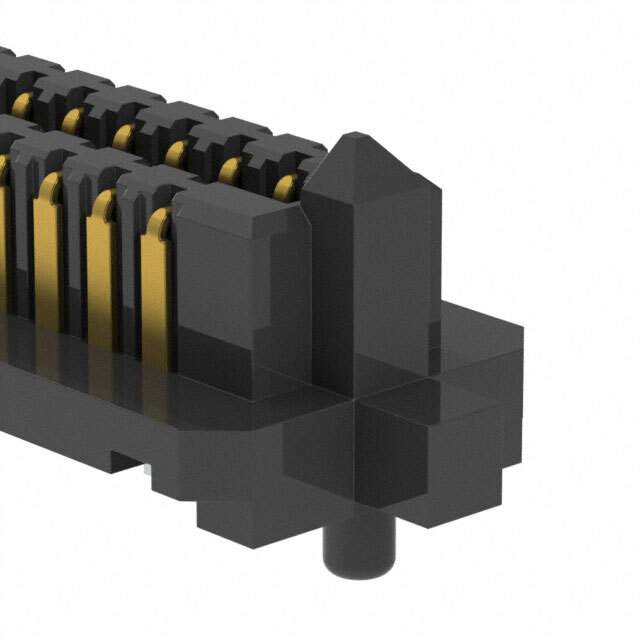

SEAM-20-03.0-S-04-1-A-K-TR

Name: SEAM-20-03.0-S-04-1-A-K-TR
Brand: Samtec Inc.
SKU: 1293513
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAM-20-03.0-S-04-1-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAM-20-03.0-S-04-1-A-K-TR Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAM
Package	Tape & Reel
Connector Type	High Density Array, Male
Number of Positions	80
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	8mm, 9mm, 9.5mm, 10.5mm, 11mm
Height Above Board	0.220" (5.59mm)
Base Product Number	SEAM-20
Other Names	612-SEAM-20-03.0-S-04-1-A-K-TRCT,SEAM-20-03.0-S-04-1-A-K-TR,612-SEAM-20-03.0-S-04-1-A-K-TR,612-SEAM-20-03.0-S-04-1-A-K-TRDKR
Standard Package	325
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293513-SEAM-20-03.0-S-04-1-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAM-20-03.0-S-04-1-A-K-TR CAD Model

Alternative Products

Description

The Samtec Inc. 1293513-SEAM-20-03.0-S-04-1-A-K-TR is a high-density array connector designed for board-to-board applications.

Connector Type: Male
Positions: 80
Rows: Four
Pitch: 0.050" (1.27mm)
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Packaging: Tape and Reel
Standard Package: 325
Height Above Board: 0.220" (5.59mm)
Mounting: SMD (SMT)
ECCN: EAR99
REACH: Unaffected
