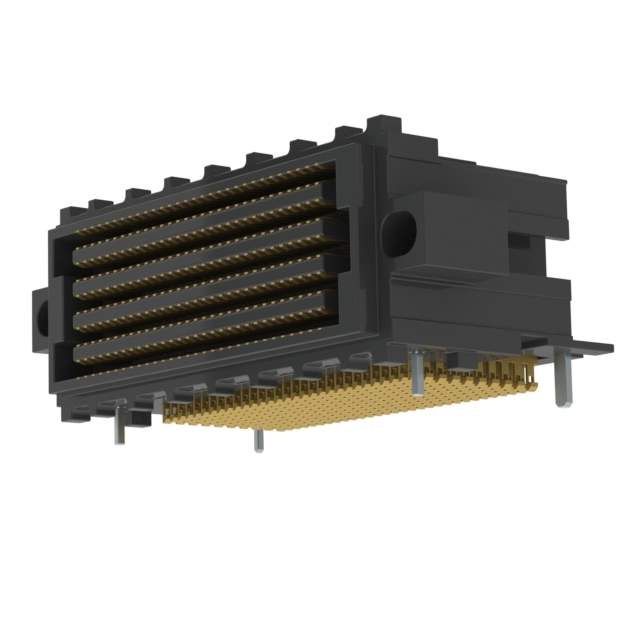

The SEAF8-30-1-S-10-2-RA-GP is a right-angle, high-density, open-pin-field array connector from Samtec Inc., part of their SEARAY™ family. This connector is designed for demanding applications requiring high-speed data transmission and reliable board-to-board connections. It features a fine pitch, right-angle termination, and gold-plated contacts for optimal signal integrity. The GP suffix typically denotes a guide post option.

Applications

• High-speed backplanes in servers and data centers
• Networking equipment
• Telecommunications infrastructure
• Medical imaging equipment
• Industrial automation

Features

• High-density open-pin-field array
• Right-angle termination for design flexibility
• Gold-plated contacts for optimal signal integrity
• Robust construction for demanding environments
• Guide posts for precise alignment

Benefits

• Enables high-speed data transmission
• Provides reliable and stable connections
• Offers design flexibility with right-angle termination
• Ensures long-term performance and durability
• Facilitates precise alignment during assembly

Additional Details

The SEAF8-30-1-S-10-2-RA-GP connector is designed to meet the stringent requirements of high-speed applications. The fine pitch allows for increased density, reducing the overall size of the board. The right-angle termination provides design flexibility, allowing for connections in tight spaces. The gold-plated contacts provide excellent conductivity and corrosion resistance, ensuring optimal signal integrity. The guide posts facilitate precise alignment during assembly.

This connector is part of Samtec's extensive line of high-performance interconnect solutions. It is designed to provide a reliable and cost-effective solution for a wide range of applications. It mates with Samtec's SEAM series. The SEAF series is a very common high density open pin field array system from Samtec.
