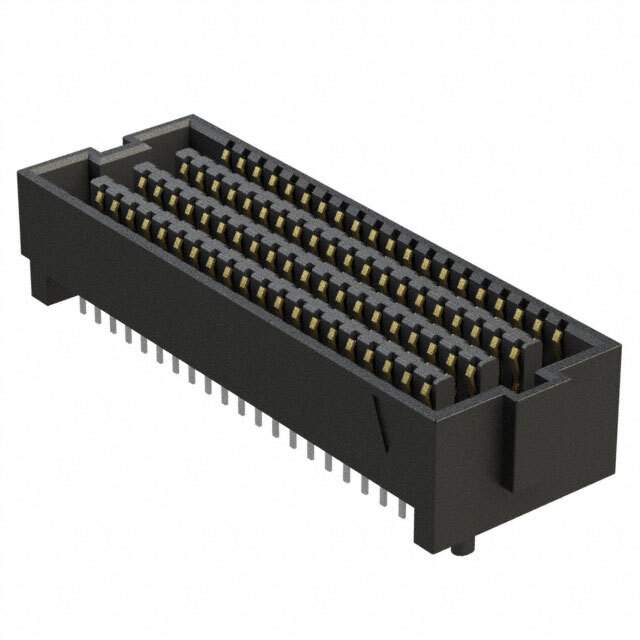

SEAF8-20-05.0-S-08-2-K

Name: SEAF8-20-05.0-S-08-2-K
Brand: Samtec Inc.
SKU: 1293920
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF8-20-05.0-S-08-2-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF8-20-05.0-S-08-2-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel
Connector Type	High Density Array, Female
Number of Positions	160
Pitch	0.031" (0.80mm)
Number of Rows	8
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 10mm
Height Above Board	0.180" (4.57mm)
Base Product Number	SEAF8-20
Other Names	SAM15444CT,SEAF8-20-05.0-S-08-2-K,SAM15444DKR,SAM15444TR
Standard Package	425
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293920-SEAF8-20-05.0-S-08-2-K
Ultra Librarian 3D Model	Ultra Librarian SEAF8-20-05.0-S-08-2-K CAD Model

Alternative Products

Description

The SEARAY™ SEAF connector is a high-density array, female connector that comes with a board guide and pick and place features.

Positions: 160
Pitch: 0.031 inches (0.80mm)
Rows: 8
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Package: Tape and reel
Mated Stacking Heights: 7mm and 10mm
Height Above Board: 0.180 inches (4.57mm)
Applications: Rectangular connectors, interconnects, edge type, mezzanine (board to board)
