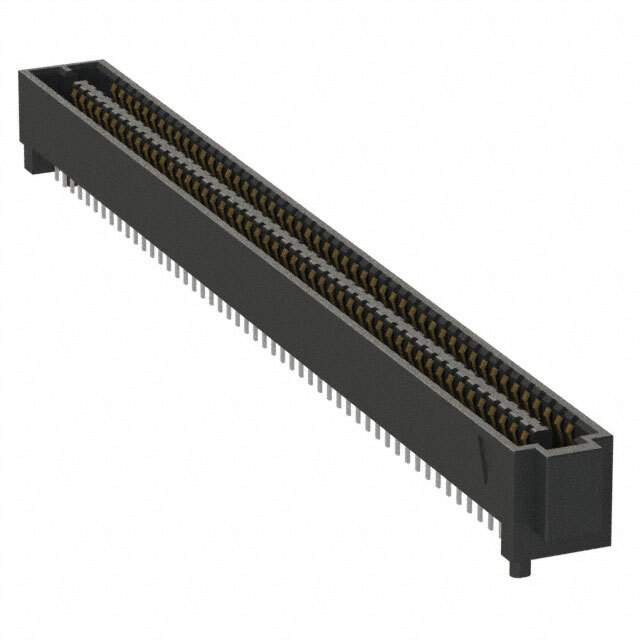

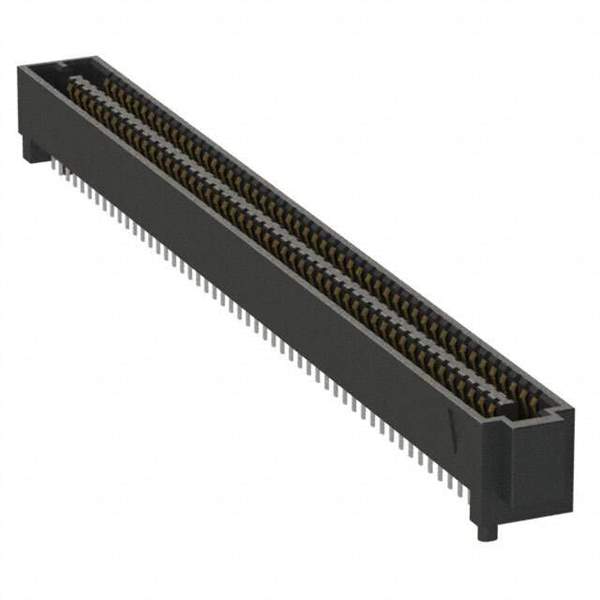

The SEAF-50-06.5-S-04-1-A-K-TR is a high-density, high-speed edge card socket from Samtec's SEARAY™ family. This connector is engineered for applications demanding reliable signal integrity and space-saving connectivity. It has a surface mount termination and is supplied on tape and reel for automated assembly.

Applications:

• High-speed backplanes
• Edge card connections for PCBs
• Data center servers
• Networking switches and routers
• Medical imaging equipment
• Automated test equipment

Features:

• High-Density Design: Enables a large number of I/O connections in a minimal footprint.
• Surface Mount Termination: Facilitates automated assembly and reflow soldering processes.
• Edge Card Socket: Specifically designed to mate with edge cards.
• SEARAY™ Contact System: Offers high-reliability and signal integrity.
• Tape and Reel Packaging: Suited for automated pick-and-place assembly.
• 6.5mm Stack Height: Provides a compact solution for height-constrained applications.

Benefits:

• Optimized Board Space: Allows for denser component placement on the PCB.
• Reliable Signal Transmission: Ensures consistent performance in demanding high-speed applications.
• Streamlined Manufacturing: Tape and reel packaging simplifies the manufacturing process.
• High-Speed Data Transfer: Supports high data rates necessary for modern applications.
• Enhanced Design Flexibility: Compact size offers more options for board layout.

Additional Details:

The SEAF-50-06.5-S-04-1-A-K-TR features a 1.27 mm pitch and is manufactured with high-quality materials for long-term reliability. The gold-plated contacts minimize signal loss and ensure a secure connection. This connector is designed to meet the requirements of high-speed digital systems.

Consult the official Samtec datasheet for detailed dimensions, electrical specifications, and mating information.
