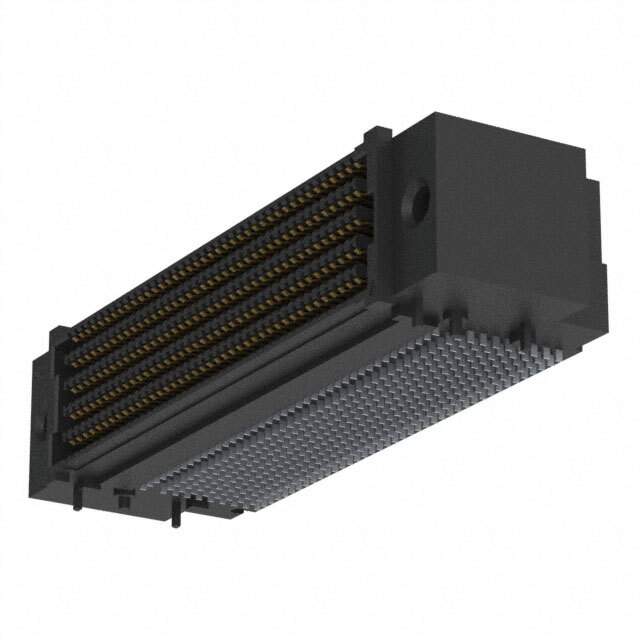

Same model may have multiple batches, images only for reference.

SEAF-40-01-L-10-2-RA-GP-K-TR

Name: SEAF-40-01-L-10-2-RA-GP-K-TR
Brand: Samtec Inc.
SKU: 1293904
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-40-01-L-10-2-RA-GP-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-40-01-L-10-2-RA-GP-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel
Connector Type	High Density Array, Female
Number of Positions	400
Pitch	0.050" (1.27mm)
Number of Rows	10
Mounting Type	Surface Mount, Right Angle
Features	Board Guide, Mating Flange, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Height Above Board	0.611" (15.53mm)
Base Product Number	SEAF-40
Other Names	SAM14354TR,SAM14354DKR,SEAF-40-01-L-10-2-RA-GP-K-TR,SAM14354CT
Standard Package	75
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293904-SEAF-40-01-L-10-2-RA-GP-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-40-01-L-10-2-RA-GP-K-TR CAD Model

Alternative Products

Description

The SEARAY™ SEAF series is a high-density connector system that offers 400 positions in a 10-row female array configuration.

Application: Board-to-board
Pitch: 0.050" (1.27mm)
Connector: SEAF-40-01-L-10-2-RA-GP-K-TR
Termination: Gold
Thickness: 10.0µin (0.25µm)
Features: Board guide, mating flange, and pick and place capability
Package: Tape and reel
Standard Package: 75
Height Above Board: 0.611" (15.53mm)
Mounting: Surface mountable with a right-angle orientation
Temperature Range: -55°C to 125°C
