Same model may have multiple batches, images only for reference.

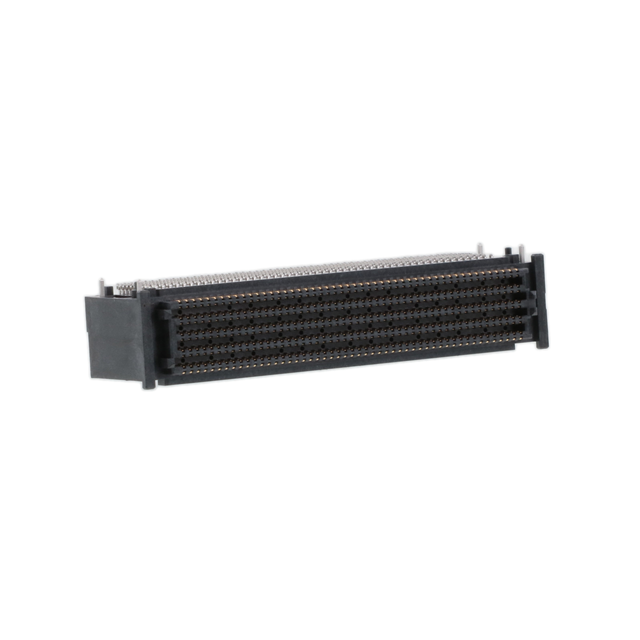

SEAF-40-01-L-06-1-RA-GP-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-40-01-L-06-1-RA-GP-TR

Part No SEAF-40-01-L-06-1-RA-GP-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-40-01-L-06-1-RA-GP-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 240
Pitch 0.050" (1.27mm)
Number of Rows 6
Mounting Type Surface Mount, Right Angle
Features Board Guide, Mating Flange
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Height Above Board 0.411" (10.45mm)
Base Product Number SEAF-40
Standard Package 100
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293660-SEAF-40-01-L-06-1-RA-GP-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-40-01-L-06-1-RA-GP-TR CAD Model

Description

The 1293660-SEAF-40-01-L-06-1-RA-GP-TR is a high-quality rectangular connector from Samtec Inc.

  • Positions: 240
  • Pitch: 0.050 inches
  • Mounting: Surface Mount, Right Angle
  • Height Above Board: 0.411 inches
  • RoHS: Non-compliant
