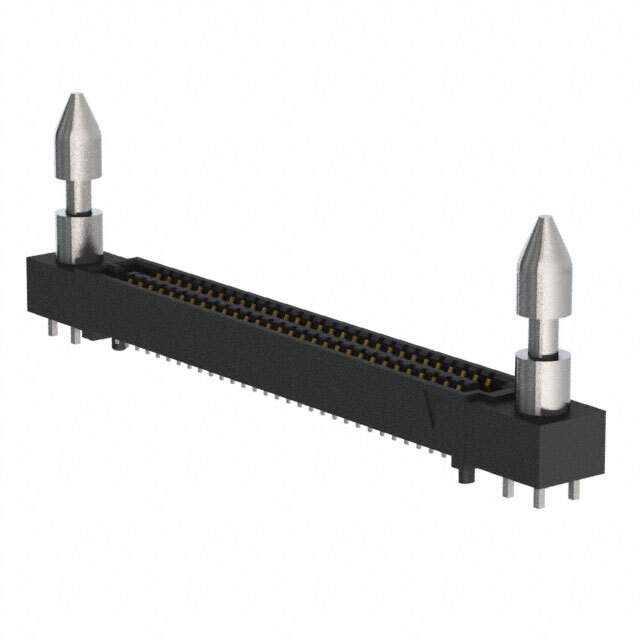

SEAF-30-05.0-S-04-2-A-LP-K-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-30-05.0-S-04-2-A-LP-K-TR

Part No SEAF-30-05.0-S-04-2-A-LP-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-30-05.0-S-04-2-A-LP-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type High Density Array, Female
Number of Positions 120
Pitch 0.050" (1.27mm)
Number of Rows 4
Mounting SMD (SMT)
Features Board Guide, Latches, Pick and Place
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board 0.199" (5.05mm)
Base Product Number SEAF-30
Other Names 612-SEAF-30-05.0-S-04-2-A-LP-K-TR,612-SEAF-30-05.0-S-04-2-A-LP-K-TRCT,SEAF-30-05.0-S-04-2-A-LP-K-TR
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293798-SEAF-30-05.0-S-04-2-A-LP-K-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-30-05.0-S-04-2-A-LP-K-TR CAD Model

Description

The SEARAY SEAF series features a 120-position high-density female array connector with pick and place and board guide features, designed for mezzanine board-to-board connections.

  • Number of Positions: 120
  • Features: Pick and place and board guide
  • Application: Mezzanine board-to-board connections
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin
  • Pitch: 0.050"
  • Height Above Board: 0.199"
  • Package: Tape and reel or cut tape
  • Mounting: SMD mounting
