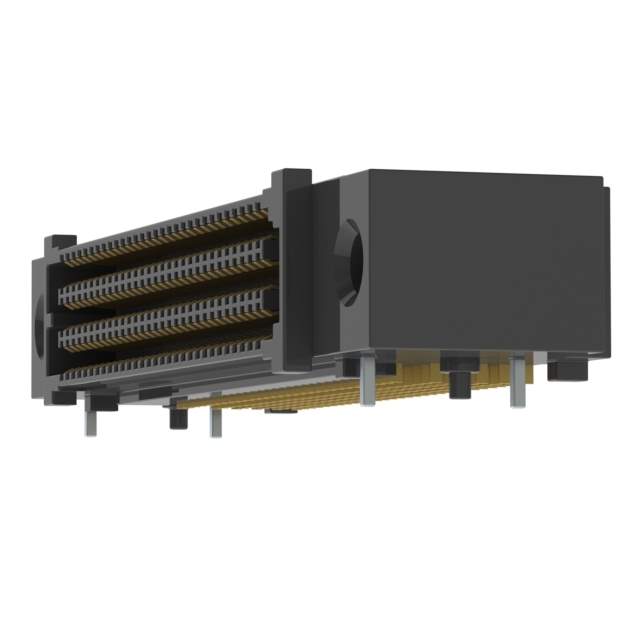

SEAF-30-01-S-06-2-RA-GP-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-30-01-S-06-2-RA-GP-TR

Part No SEAF-30-01-S-06-2-RA-GP-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-30-01-S-06-2-RA-GP-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 180
Pitch 0.050" (1.27mm)
Number of Rows 6
Mounting Type Surface Mount, Right Angle
Features Board Guide, Mating Flange
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Height Above Board 0.411" (10.45mm)
Base Product Number SEAF-30
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293712-SEAF-30-01-S-06-2-RA-GP-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-30-01-S-06-2-RA-GP-TR CAD Model

Description

The Samtec Inc. SEAF-30-01-S-06-2-RA-GP-TR is a high-density array, female connector that has a pitch of 0.050 inches.

  • Connector Type: High-Density Array, Female
  • Pitch: 0.050 inches
  • Positions: 180
  • Rows: 6
  • Contact Finish: Gold with a thickness of 30.0μin (0.76μm)
  • Height Above Board: 0.411 inches
  • Mounting: Surface Mounted with a Right Angle
  • ECCN: Yes
  • MSL Level: 1
