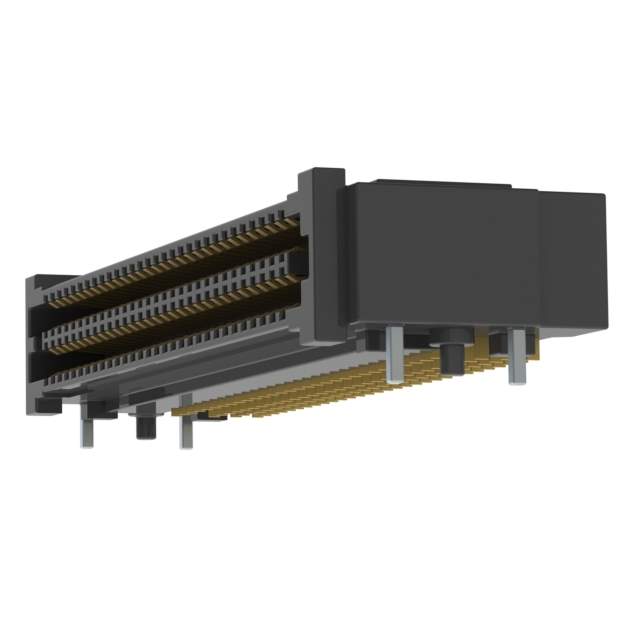

SEAF-30-01-L-04-2-RA-TR

Name: SEAF-30-01-L-04-2-RA-TR
Brand: Samtec Inc.
SKU: 1293757
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-30-01-L-04-2-RA-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-30-01-L-04-2-RA-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	120
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting Type	Surface Mount, Right Angle
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Height Above Board	0.311" (7.90mm)
Base Product Number	SEAF-30
Standard Package	175
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293757-SEAF-30-01-L-04-2-RA-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-30-01-L-04-2-RA-TR CAD Model

Alternative Products

Description

The Samtec Inc. SEARAY™ SEAF-30-01-L-04-2-RA-TR is a high-density array, female connector with 120 positions and a pitch of 0.050 inches.

Feature: Board guide
Mounting Type: Surface mount, right-angle
Package: Tape and reel
Height Above Board: 0.311 inches
