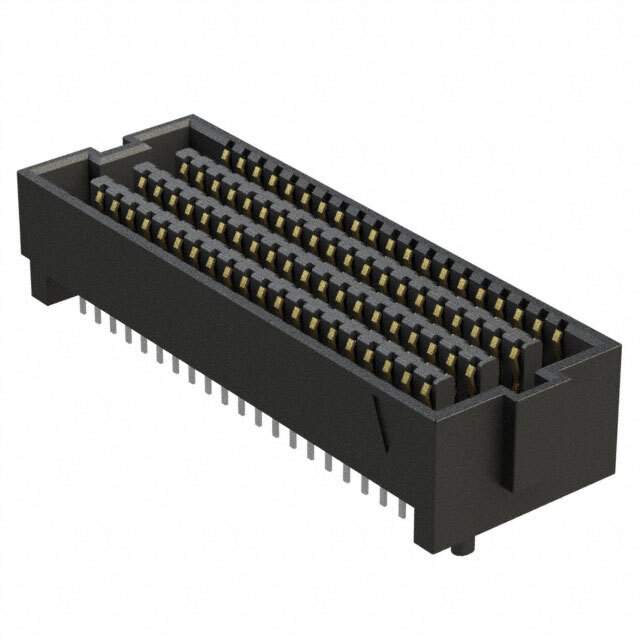

SEAF-20-06.5-S-08-2-A-K-TR

Name: SEAF-20-06.5-S-08-2-A-K-TR
Brand: Samtec Inc.
SKU: 1293893
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-20-06.5-S-08-2-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-20-06.5-S-08-2-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel
Connector Type	High Density Array, Female
Number of Positions	160
Pitch	0.050" (1.27mm)
Number of Rows	8
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, 19.5mm
Height Above Board	0.258" (6.55mm)
Base Product Number	SEAF-20
Other Names	SEAF-20-06.5-S-08-2-A-K-TR,SAM13232TR,SAM13232CT,SAM13232DKR,SEAF-20-06.5-S-08-2-A-K-FR
Standard Package	200
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293893-SEAF-20-06.5-S-08-2-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-20-06.5-S-08-2-A-K-TR CAD Model

Alternative Products

Description

The SEAF-20-06.5-S-08-2-A-K-TR is a high-density array, female connector used for rectangular connectors - arrays, edge type, mezzanine (board to board).

Manufacturer: Samtec Inc.
Series: SEARAY™ SEAF
Positions: 160
Pitch: 0.050" (1.27mm)
Height Above Board: 0.258" (6.55mm)
Packaging: Tape & Reel
Contact Finish: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Mated Stacking Heights: 8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, and 19.5mm
MSL Level: 1 (Unlimited)
HTSUS Code: 8536.69.4040
