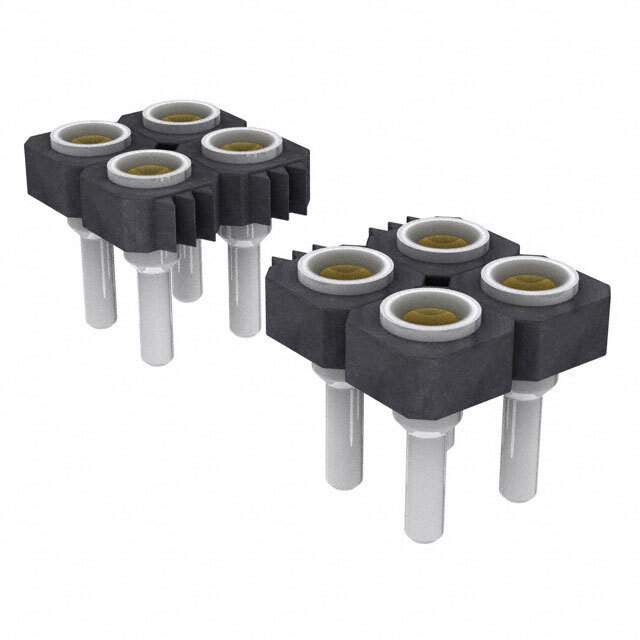

SDL-129-T-12 Real Image
Same model may have multiple batches, images only for reference.

SDL-129-T-12

Part No SDL-129-T-12
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SDL-129-T-12 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SDL
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 58
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 30.0µin (0.76µm)
Insulation Color Black
Insulation Height 0.095" (2.41mm)
Contact Length - Post 0.095" (2.41mm)
Temperature Range - Operating -55°C ~ 125°C
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SDL-129
Other Names SAM1138-29
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292969-SDL-129-T-12
Ultra Librarian 3D Model Ultra Librarian SDL-129-T-12 CAD Model

Description

The Samtec Inc. SDL-129-T-12 is a 58-position receptacle connector in the SDL series.

  • Fastening Type: Push-pull
  • Mounting Style: Through-hole
  • Contact Material: Beryllium copper
  • Contact Type: Female socket
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Insulation Material: Liquid crystal polymer (LCP)
  • Insulation Color: Black
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Current Rating (amps): Not specified
  • REACH Status: Unaffected
