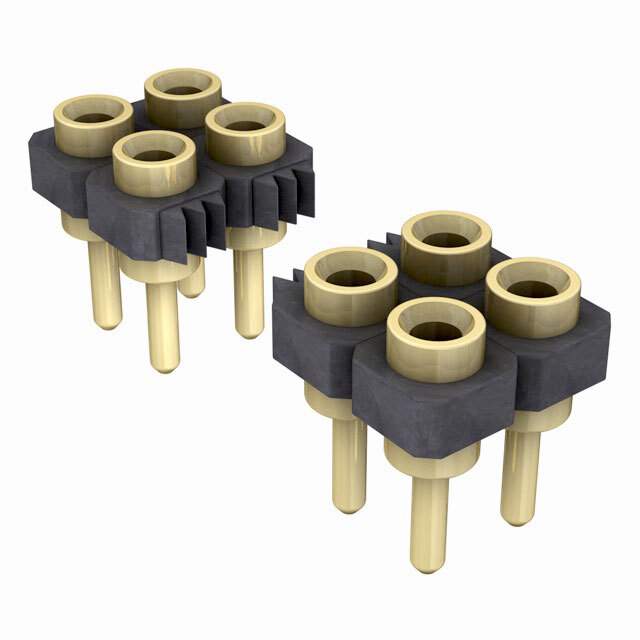

SDL-112-G-10

Name: SDL-112-G-10
Brand: Samtec Inc.
SKU: 1292891
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SDL-112-G-10
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SDL-112-G-10 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SDL
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	24
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.122" (3.10mm)
Contact Length - Post	0.108" (2.75mm)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	SDL-112
Other Names	SAM1133-12
Standard Package	1
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1292891-SDL-112-G-10
Ultra Librarian 3D Model	Ultra Librarian SDL-112-G-10 CAD Model

Description

The SDL series of connectors from Samtec Inc. is a board-to-board receptacle connector, designed for use in electronic devices and systems.

Manufacturer: Samtec Inc.
Series: SDL
Type: board-to-board receptacle connector
Pitch: 0.100" (2.54mm)
Contact Shape: circular
Contact Material: beryllium copper
Contact Length: 0.108" (2.75mm)
Insulation Height: 0.122" (3.10mm)
Temperature Range: -55°C to 125°C
Package: tube
Fastening Type: push-pull
Mounting: through-hole
Row Spacing: 0.100" (2.54mm)
Contact Finish: gold
Finish Thickness: 10.0µin (0.25µm)
Application: applications that require a reliable and secure board-to-board connection
