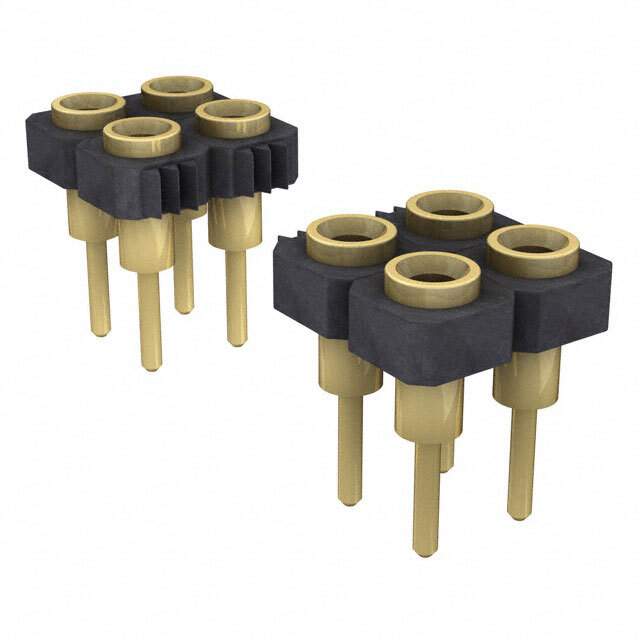

Same model may have multiple batches, images only for reference.

SDL-110-G-19

Name: SDL-110-G-19
Brand: Samtec Inc.
SKU: 1293004
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SDL-110-G-19
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SDL-110-G-19 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	SDL
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	20
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.083" (2.10mm)
Contact Length - Post	0.082" (2.08mm)
Temperature Range - Operating	-55°C ~ 125°C
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Circular
Contact Material	Beryllium Copper
Base Product Number	SDL-110
Other Names	SDL-110-G-19,SAM11667
Standard Package	22
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293004-SDL-110-G-19
Ultra Librarian 3D Model	Ultra Librarian SDL-110-G-19 CAD Model

Alternative Products

Description

The Samtec Inc. SDL-110-G-19 is a 20-position rectangular connector that is designed for board to board style applications.

Series: SDL
Positions Loaded: All
Pitch: 0.100 inches (2.54mm)
Connector Type: Receptacle
Contact Type: Female socket
Rows: Two
Termination Type: Solder
Fastening Type: Push-pull
Contact Material: Beryllium copper
Contact Finish: Gold
Win Source Part Number: 1293004-SDL-110-G-19
