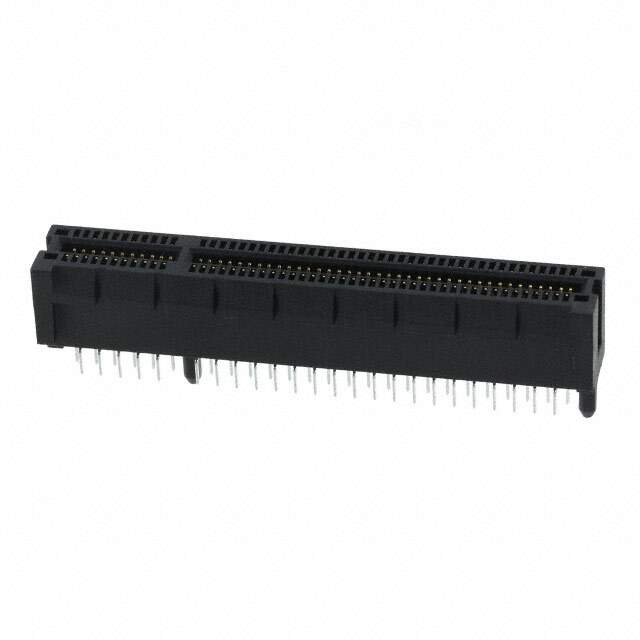

PCIE-098-02-F-D-TH

Part No PCIE-098-02-F-D-TH
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN PCI EXP FMALE 98POS 0.039 / 98 Position Female Connector PCI Express™ Gold 0.039" (1.00mm) Black
Datasheet
PCIE-098-02-F-D-TH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors>Edgeboard Connectors
Manufacturer Samtec Inc.
Packaging Tube
Card Type PCI Express™
Gender Female
Number of Positions 98
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.039" (1.00mm)
Read Out Dual
Features Board Guide
Mounting Through Hole
Termination Solder, Staggered
Contact Material Phosphor Bronze
Contact Finish Gold
Contact Finish Thickness 3.00µin (0.076µm)
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number PCIE-098
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number SAM9745
Standard Package 10
Win Source Part Number 1334094-PCIE-098-02-F-D-TH
Ultra Librarian 3D Model Ultra Librarian PCIE-098-02-F-D-TH CAD Model

Description

The Samtec Inc. PCIE-098-02-F-D-TH is a connector component.

  • Supply and Demand Status: Unlimited
  • RoHS3 Compliant: Yes
  • Connector Type: Female
  • Number of Positions: 98
  • Pitch: 0.039 inches
  • Feature: Board Guide
  • Termination: Staggered Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.00µin
  • Contact Material: Phosphor Bronze
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Application: PCI Express™ cards
  • Temperature Range: -55°C to 125°C
