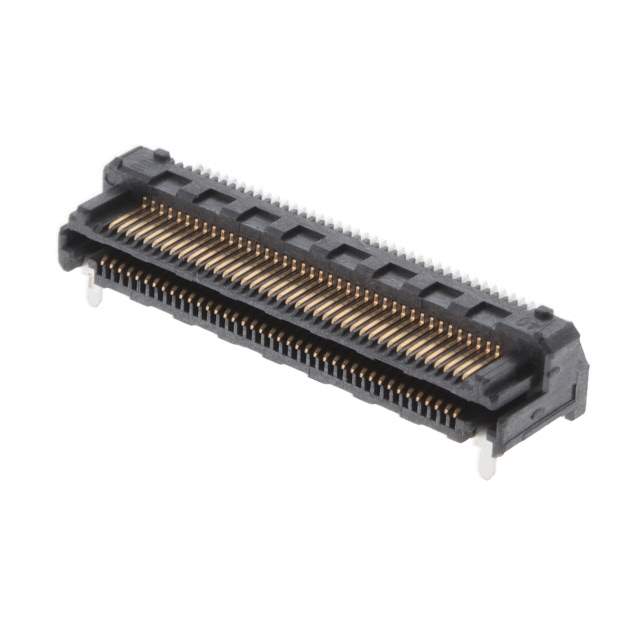

LSHM-140-01-L-DH-A-N-K-TR

Name: LSHM-140-01-L-DH-A-N-K-TR
Brand: Samtec Inc.
SKU: 1337276
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LSHM-140-01-L-DH-A-N-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN SELF-MATE 80P R/A SMD GOLD / 80 Position Connector Self Mating, Non-Gendered, Hermaphroditic Surface Mount, Right Angle Gold
Datasheet	LSHM-140-01-L-DH-A-N-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Razor Beam™ LSHM
Package	Tape & Reel
Connector Type	Self Mating, Non-Gendered, Hermaphroditic
Number of Positions	80
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount, Right Angle
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Height Above Board	0.202" (5.13mm)
Base Product Number	LSHM-140
Standard Package	375
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1337276-LSHM-140-01-L-DH-A-N-K-TR
Ultra Librarian 3D Model	Ultra Librarian LSHM-140-01-L-DH-A-N-K-TR CAD Model

Alternative Products

Description

The LSHM-140-01-L-DH-A-N-K-TR is a rectangular connector from Samtec Inc.

Packaging: Tape & Reel
Connector Type: Rectangular
Features: Self Mating, Non-Gendered, Hermaphroditic
Number of Rows: 2
Pitch: 0.020" (0.50mm)
Features: Board Guide, Pick and Place
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
ECCN: EAR99
MSL: 1 (Unlimited)
HTSUS: 8536.69.4040
Base Product Number: LSHM-140
