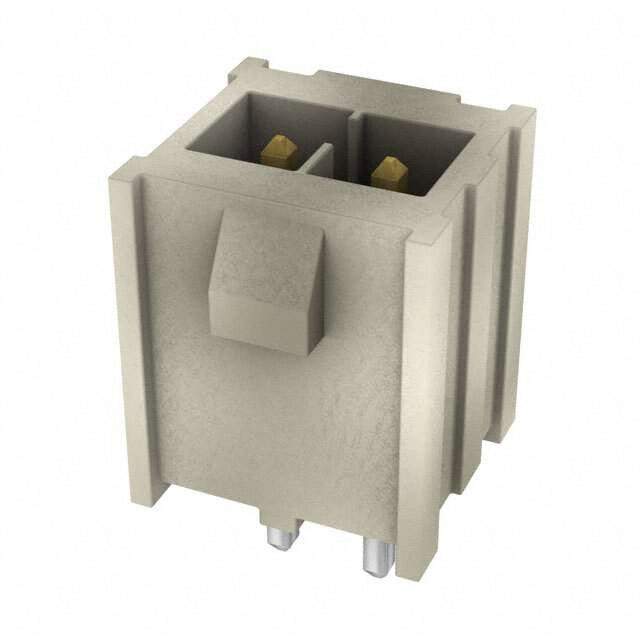

Same model may have multiple batches, images only for reference.

IPL1-102-01-L-S-K

Name: IPL1-102-01-L-S-K
Brand: Samtec Inc.
SKU: 1332409
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IPL1-102-01-L-S-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 2POS 2.54MM / Connector Header Through Hole 2 position 0.100" (2.54mm)
Datasheet	IPL1-102-01-L-S-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Samtec Inc.
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Locking Ramp
Contact Length - Mating	0.215" (5.46mm)
Contact Length - Post	0.120" (3.05mm)
Insulation Height	0.320" (8.13mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Voltage Rating	675VAC, 954VDC
Base Product Number	IPL1-102
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	SAM8824,Q7165861R,IPL1-102-01-L-S-K-ND
Standard Package	87
Win Source Part Number	1332409-IPL1-102-01-L-S-K
Ultra Librarian 3D Model	Ultra Librarian IPL1-102-01-L-S-K CAD Model

Alternative Products

Description

The Samtec Inc. 1332409-IPL1-102-01-L-S-K is a header connector with a locking ramp fastening type.

Fastening Type: Locking Ramp
Positions: 2
Contact Type: Male Pin
Contact Material: Phosphor Bronze
Voltage Rating: 675VAC, 954VDC
Pitch: 0.100" (2.54mm)
Style: Board to Cable/Wire
Mounting Type: Through Hole
Shrouding: Shrouded-4 Wall
Contact Finish - Mating: Gold
Contact Finish Thickness - Mating: 10.0µin (0.25µm)
Contact Finish - Post: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Natural
Temperature Range: -55°C to 125°C
