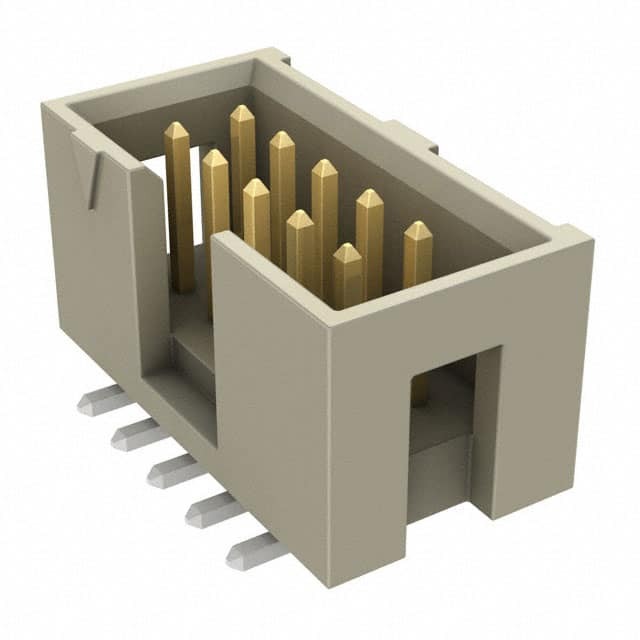

HTST-105-01-S-DV-P-TR

Name: HTST-105-01-S-DV-P-TR
Brand: Samtec Inc.
SKU: 1316147
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HTST-105-01-S-DV-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	HTST-105-01-S-DV-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, HTST
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Insulation Height	0.350" (8.89mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot, Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3.4A per Contact
Base Product Number	HTST-105
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1316147-HTST-105-01-S-DV-P-TR
Ultra Librarian 3D Model	Ultra Librarian HTST-105-01-S-DV-P-TR CAD Model

Alternative Products

Description

The HTST series of rectangular connectors from Samtec Inc. are a great choice for those looking for a reliable and efficient component.

Features: Keying slot and pick and place
Connector Type: Header
Contact Type: Male pin
Positions Loaded: All
Pitch-Mating: 0.100" (2.54mm)
Contact Finish-Mating: Gold
Current Rating: 3.4A per contact
Packaging: Tape and reel
Voltage Rating: -
Mounting Technology: SMD (SMT)
Package: Shrouded-4 wall
Standard Package: 1 unit
