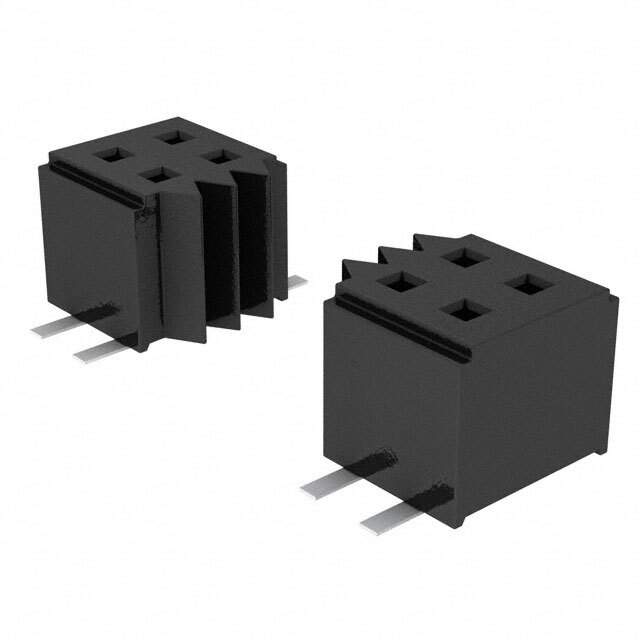

Same model may have multiple batches, images only for reference.

CLM-105-02-F-D-TR

Name: CLM-105-02-F-D-TR
Brand: Samtec Inc.
SKU: 1293080
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CLM-105-02-F-D-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	CLM-105-02-F-D-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	CLM
Package	Tape & Reel
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.039" (1.00mm)
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Insulation Color	Black
Insulation Height	0.084" (2.14mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	2.8A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	CLM-105
Other Names	SAM13377CT,SAM13377DKR,SAM13377TR,CLM-105-02-F-D-TR,CLM-105-02-F-D-FR
Standard Package	1,250
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293080-CLM-105-02-F-D-TR
Ultra Librarian 3D Model	Ultra Librarian CLM-105-02-F-D-TR CAD Model

Alternative Products

Description

The CLM series connector is a receptacle type connector featuring a female socket contact type with a solder termination.

Positions: 10
Rows: 2
Positions Loaded: All
Insulation Material: Liquid Crystal Polymer
Insulation Color: Black
Pitch: 0.039" (1.00mm)
Contact Finish: Gold
Contact Finish Thickness (Mating): 3.00µin (0.076µm)
Contact Finish (Post): Tin
Operating Temperature Range: -55°C to 125°C
Current Rating: 2.8A per contact
Fastening Type: Push-Pull
Material Flammability Rating: UL94 V-0
