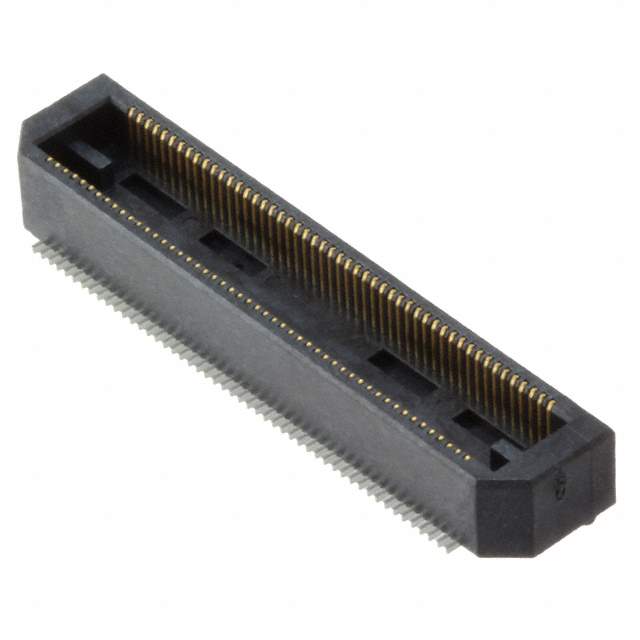

BTH-050-01-L-D-A-K-TR

Name: BTH-050-01-L-D-A-K-TR
Brand: Samtec Inc.
SKU: 1338086
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BTH-050-01-L-D-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR 100POS SMD GOLD / 100 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet	BTH-050-01-L-D-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	BTH
Package	Tape & Reel
Connector Type	Header, Outer Shroud Contacts
Number of Positions	100
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting Type	Surface Mount
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	5mm
Height Above Board	0.168" (4.27mm)
Base Product Number	BTH-050
Standard Package	425
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
California Prop 65	Warning Information
Win Source Part Number	1338086-BTH-050-01-L-D-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian BTH-050-01-L-D-A-K-TR CAD Model

Alternative Products

Description

The Samtec Inc. BTH series connector is a header, outer shroud contacts connector that is used for board-to-board interconnects.

Positions: 100
Pitch: 0.020" (0.50mm)
Height Above Board: 0.168" (4.27mm)
Form Factor: Tape & Reel
Mounting Type: Surface Mount
Contact Finish: Gold
Finish Thickness: 10.0µin (0.25µm)
Rows: 2
Series: BTH
Features: Board Guide
Mated Stacking Height: 5mm
