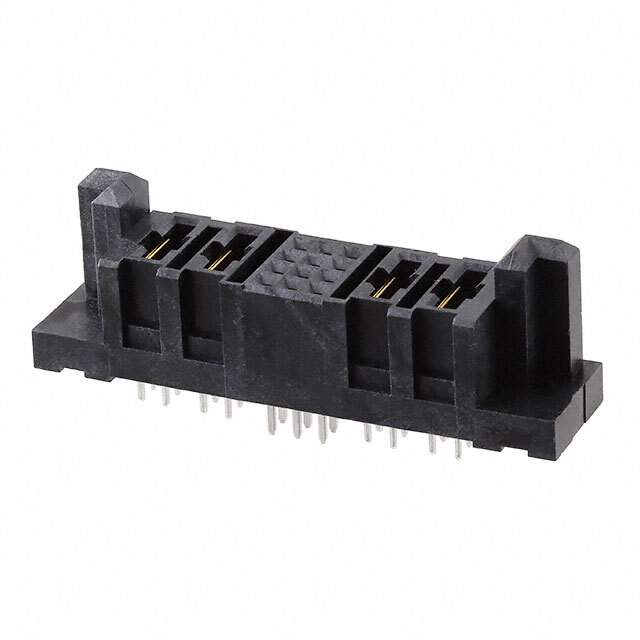

Same model may have multiple batches, images only for reference.

PESC-02-12-02-01-L-VT

Name: PESC-02-12-02-01-L-VT
Brand: Samtec Inc.
SKU: 511387
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PESC-02-12-02-01-L-VT
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	VERTICAL POWER SOCKET
Datasheet	PESC-02-12-02-01-L-VT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Packaging	Tray
Status	Active
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	16 (12 + 4 Power)
Number of Positions Loaded	All
Number of Rows	4
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10μin (0.25μm)
Insulation Color	Black
Insulation Height	0.497" (12.62mm)
Contact Length - Post	0.097" (2.47mm)
Temperature Range - Operating	-55°C to 105°C
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Win Source Part Number	1094666-PESC-02-12-02-01-L-VT
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian PESC-02-12-02-01-L-VT CAD Model

Alternative Products

Description

The PESC-02-12-02-01-L-VT is a 16-position receptacle connector manufactured by Samtec Inc.

Positions: 16
Row Design: 4-row
Signal Contacts: 12
Power Contacts: 4
Mounting Type: Through-Hole
Contact Finish: Gold
Voltage Rating: -
Current Rating: -
Compliance: RoHS Compliant
Flammability: UL94 V-0
