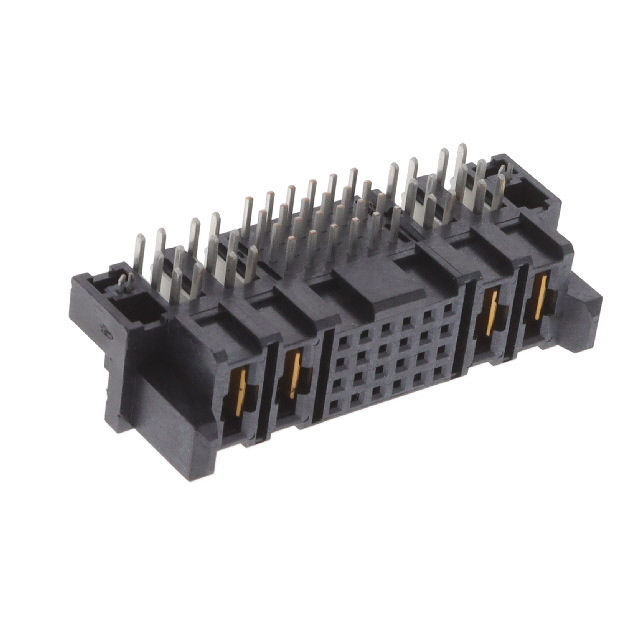

Same model may have multiple batches, images only for reference.
MPTC-01-80-01-6.30-01-L-V-LC Samtec Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MPTC-01-80-01-6.30-01-L-V-LC

Part No MPTC-01-80-01-6.30-01-L-V-LC
Manufacturer Samtec Inc.
Catalog Rectangular Connectors - Headers, Male Pins
Description CONN HDR 5MM SGNL/PWR COMBO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Header
Contact Type Male Blade; Male Pin
Number of Positions 82 (80 + 2 Power)
Number of Rows 4
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Locking Ramp
Contact Length - Post 0.107" (2.71mm)
Insulation Height 0.448" (11.38mm)
Contact Shape Rectangular, Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Copper Alloy, Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Lock
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1508791-MPTC-01-80-01-6.30-01-L-V-LC
Ultra Librarian 3D Model Ultra Librarian MPTC-01-80-01-6.30-01-L-V-LC CAD Model
