Same model may have multiple batches, images only for reference.

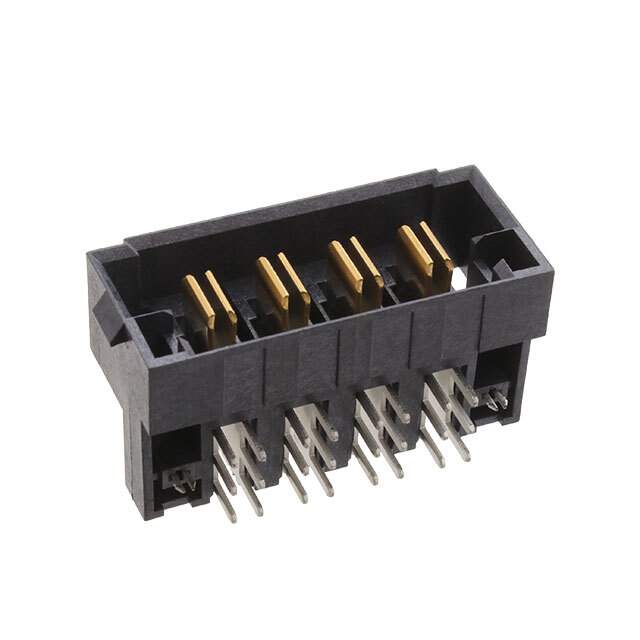

MPT-04-01-01-L-RA-LC Real Image
Same model may have multiple batches, images only for reference.

MPT-04-01-01-L-RA-LC

Part No MPT-04-01-01-L-RA-LC
Manufacturer Samtec Inc.
Catalog Blade Type Power Connectors
Description VERTICAL POWER TERMINAL / 4 Position Header, Male Blades Connector Solder 0.197" (5.00mm) Through Hole, Right Angle
Datasheet
MPT-04-01-01-L-RA-LC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Blade Type Power Connectors
Mfr Samtec Inc.
Series PowerStrip™ 30 MPT
Package Tray
Connector Type Header, Male Blades
Number of Positions 4
Pitch 0.197" (5.00mm)
Mounting Type Through Hole, Right Angle
Number of Rows 1
Termination Solder
Features Latch Lock
Color Black
Fastening Type Locking Ramp
Contact Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Voltage Rating 812 V
Current Rating (Amps) 30 A
Material - Insulation Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Base Product Number MPT-04
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM11539,MPT-04-01-01-L-RA-LC-ND
Standard Package 64
Win Source Part Number 1080184-MPT-04-01-01-L-RA-LC
Ultra Librarian 3D Model Ultra Librarian MPT-04-01-01-L-RA-LC CAD Model

Description

The MPT-04-01-01-L-RA-LC blade type power connector from Samtec Inc. is commonly used in various electronic devices.

  • Number of Positions: 4
  • Pitch: 0.197 inches (5.00mm)
  • Mounting: Through-Hole, Right Angle
  • Fastening Type: Locking Ramp
  • Current Rating: 30A
  • Voltage Rating: 812V
  • Contact Material: Copper Alloy
  • Contact Finish Thickness: 10.0μin (0.25μm)
  • Latch Lock: Yes
  • Standard Package: 64
