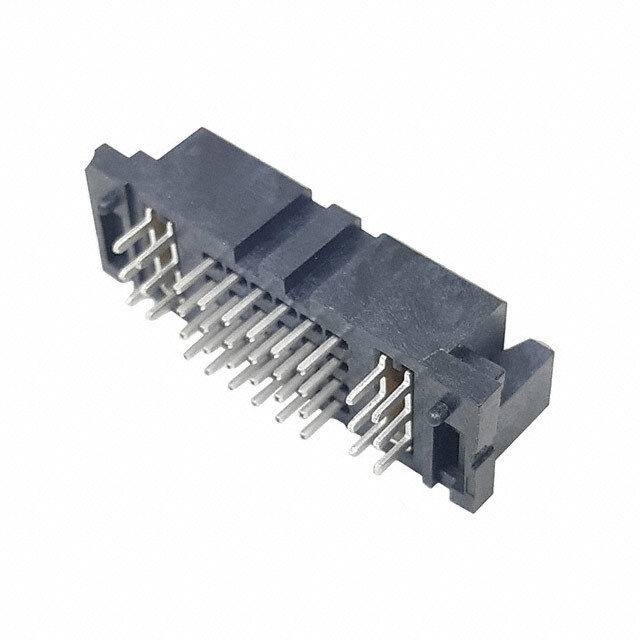

MPSC-02-16-02-7.70-03-L-V-LC Samtec Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

MPSC-02-16-02-7.70-03-L-V-LC

Part No MPSC-02-16-02-7.70-03-L-V-LC
Manufacturer Samtec Inc.
Catalog Rectangular Connectors - Headers, Receptacles, Female Sockets
Description 5.00 MM POWERSTRIP/30 A SIGNAL/
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 20 (16 + 4 Power)
Number of Positions Loaded All
Number of Rows 4
Row Spacing - Mating 0.079" (2.00mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.298" (7.57mm)
Contact Length - Post 0.139" (3.53mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Features Board Lock, Mounting Flange
Package Tray
Supply and Demand Status Shortage
Win Source Part Number 1508788-MPSC-02-16-02-7.70-03-L-V-LC
Ultra Librarian 3D Model Ultra Librarian MPSC-02-16-02-7.70-03-L-V-LC CAD Model
