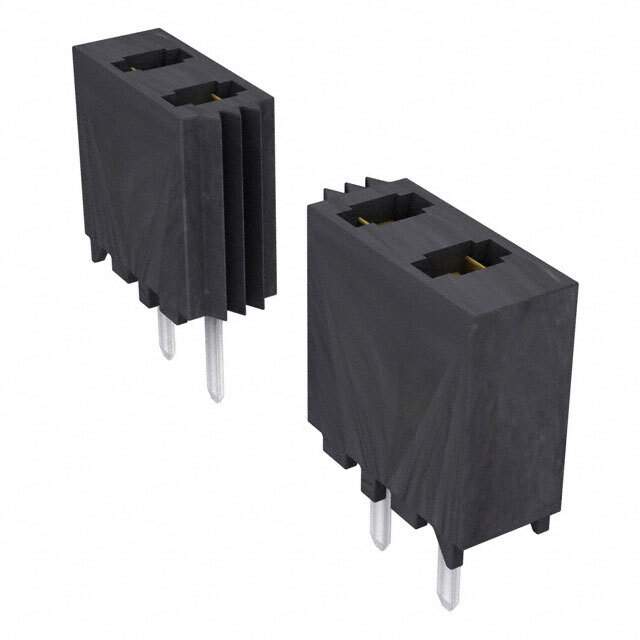

Same model may have multiple batches, images only for reference.

MMS-111-01-L-SV

Name: MMS-111-01-L-SV
Brand: Samtec Inc.
SKU: 1221027
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MMS-111-01-L-SV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 11POS 0.079 GOLD PCB / 11 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Datasheet	MMS-111-01-L-SV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	MMS
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	11
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.175" (4.45mm)
Contact Length - Post	0.115" (2.92mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Current Rating (Amps)	3.9A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	MMS-111
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1230-11
Standard Package	1
Win Source Part Number	1221027-MMS-111-01-L-SV
Ultra Librarian 3D Model	Ultra Librarian MMS-111-01-L-SV CAD Model

Description

The Samtec MMS-111-01-L-SV is a 11-position rectangular connector that is widely used in board to board or cable applications.

Manufacturer: Samtec
Positions: 11
Type: Rectangular Connector
Application: Board to Board or Cable
Pitch: 0.079" (2.00mm)
Connector Type: Receptacle
Gender: Female Sockets
Contact Material: Phosphor Bronze
Contact Finish: Gold
Mounting: Through Hole
Termination: Solder
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
Temperature Range: -55°C to 125°C
