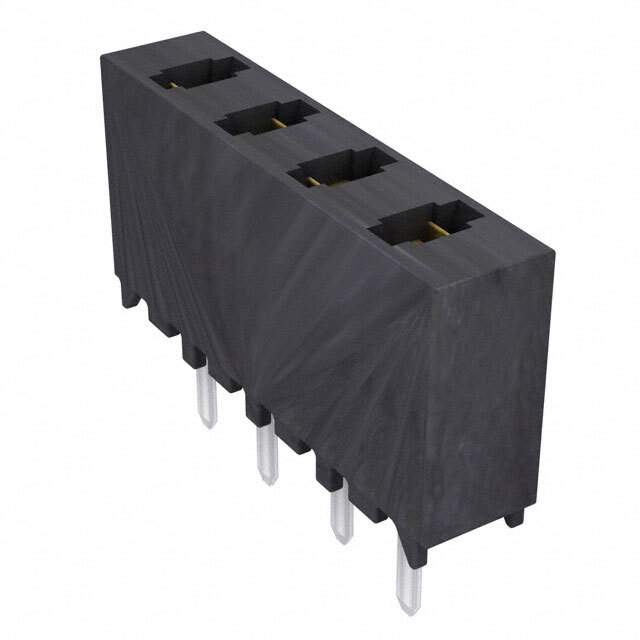

Same model may have multiple batches, images only for reference.

MMS-104-01-L-SV

Name: MMS-104-01-L-SV
Brand: Samtec Inc.
SKU: 1080395
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MMS-104-01-L-SV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 4POS 0.079 GOLD PCB / 4 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Datasheet	MMS-104-01-L-SV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	MMS
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	4
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.175" (4.45mm)
Contact Length - Post	0.115" (2.92mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Current Rating (Amps)	3.9A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	MMS-104
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1230-04
Standard Package	1
Win Source Part Number	1080395-MMS-104-01-L-SV
Ultra Librarian 3D Model	Ultra Librarian MMS-104-01-L-SV CAD Model

Description

The Samtec Inc. Samtec Inc. MMS-104-01-L-SV connector is a rectangular connector that falls under the category of connectors, interconnects.

Connector Type: receptacle connector with female socket contacts
Positions Loaded: four
Rows: one
Pitch: 0.079 inches
Voltage Rating: -
Insulation Material: liquid crystal polymer (LCP)
Applications: board-to-board or cable
Current Rating: 3.9A per contact
