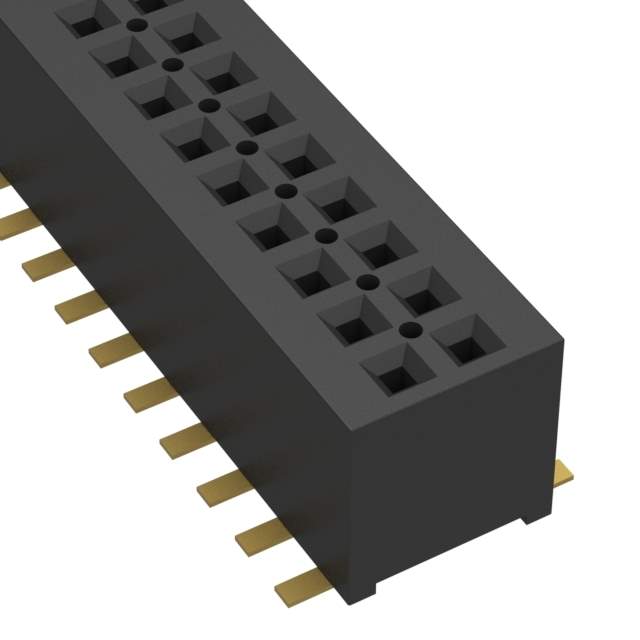

Same model may have multiple batches, images only for reference.

MLE-162-01-G-DV

Name: MLE-162-01-G-DV
Brand: Samtec Inc.
SKU: 970697
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	MLE-162-01-G-DV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 124POS 0.039 GOLD SMD / 124 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
Datasheet	MLE-162-01-G-DV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Tiger Eye™ MLE
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	124
Number of Positions Loaded	All
Pitch - Mating	0.039" (1.00mm)
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.130" (3.30mm)
Temperature Range - Operating	-55°C ~ 125°C
Current Rating (Amps)	2.9A per Contact
Voltage Rating	310VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Base Product Number	MLE-162
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1132-62
Standard Package	1
Win Source Part Number	970697-MLE-162-01-G-DV
Ultra Librarian 3D Model	Ultra Librarian MLE-162-01-G-DV CAD Model

Description

The Tiger Eye MLE series connector is a receptacle type connector with 124 positions, 2 rows, and all positions loaded.

Material: Beryllium Copper
Finish: Gold
Voltage Rating: 310VAC
Pitch: 0.039 inches
Row Spacing: 0.039 inches
Fastening Type: Push-Pull
Mounting: SMD (SMT)
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Height: 0.130 inches
Contact Shape: Square
Contact Type: Female Socket
Application: Board to Board
Temperature Range: -55°C to 125°C
