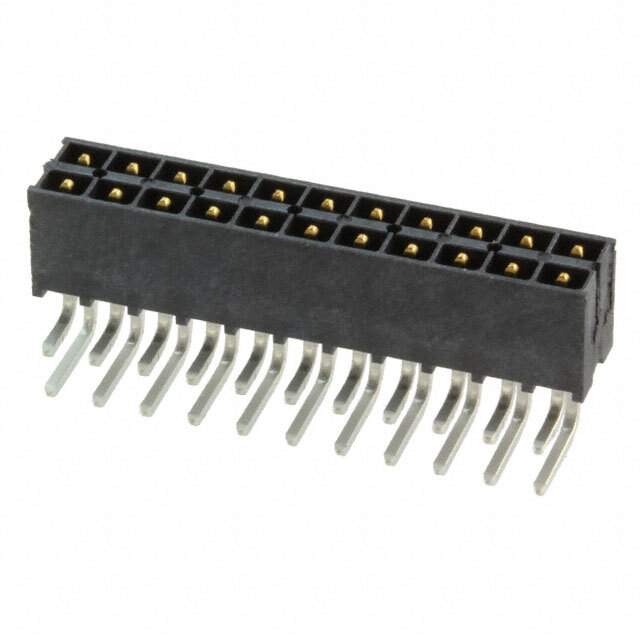

The Mini Mate® IPT1 series male pin header is a through-hole, right angle connector with two rows of 22 positions loaded with phosphor bronze contacts.

• Mounting: Through-Hole
• Orientation: Right Angle
• Rows: 2
• Positions per Row: 22
• Contact Material: Phosphor Bronze
• Pitch: 0.100" (2.54mm)
• Application: Board-to-Board
• Contact Finish (Mating): Gold, 30.0µin (0.76µm)
• Post Finish: Tin
• Current Rating: 2.3A per Contact
• Voltage Rating: 775VAC / 1095VDC
• Insulation Material: Liquid Crystal Polymer (LCP)
• Flammability Rating: UL94 V-0
• Contact Shape: Square
• Contact Length (Mating): 0.155" (3.94mm)
• Contact Length (Post): 0.090" (2.29mm)
• Operating Temperature: -55°C to 125°C
