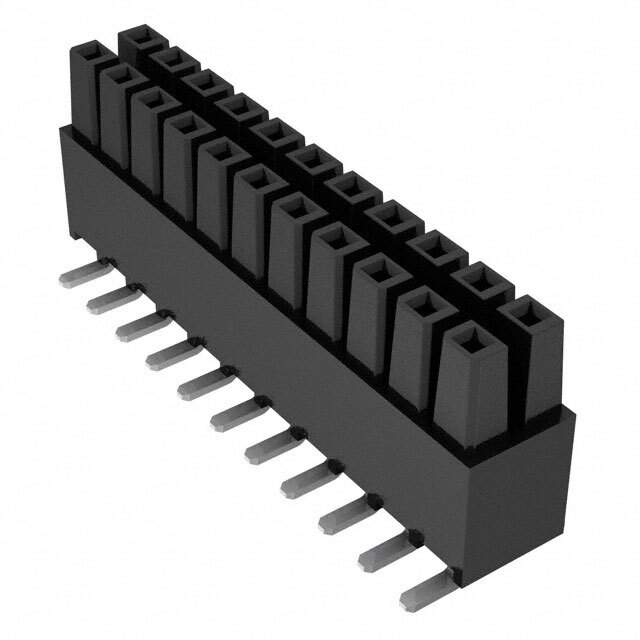

IPS1-111-01-S-D-VS

Name: IPS1-111-01-S-D-VS
Brand: Samtec Inc.
SKU: 1000329
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IPS1-111-01-S-D-VS
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 22POS 0.1 GOLD SMD / 22 Position Receptacle Connector 0.100" (2.54mm) Surface Mount Gold
Datasheet	IPS1-111-01-S-D-VS Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	Mini Mate® IPS1
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	22
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Insulation Color	Black
Insulation Height	0.335" (8.51mm)
Temperature Range - Operating	-55°C ~ 125°C
Contact Finish - Post	Tin
Voltage Rating	775VAC, 1095VDC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	IPS1-111
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM13314,IPS1-111-01-S-D-VS-ND
Standard Package	20
Win Source Part Number	1000329-IPS1-111-01-S-D-VS
Ultra Librarian 3D Model	Ultra Librarian IPS1-111-01-S-D-VS CAD Model

Description

The Mini Mate® IPS1 connector is a receptacle type that has 22 positions and two rows. Manufactured by Samtec Inc.

Positions: 22
Rows: 2
Contact Material: Phosphor Bronze
Voltage Rating: 775VAC, 1095VDC
Connector Type: Female Socket
Termination: Solder
Fastening Type: Push-Pull
Pitch Mating: 0.100" (2.54mm)
Contact Finish-Mating: Gold
Contact Finish Thickness: 30.0µin (0.76µm)
Insulation Height: 0.335" (8.51mm)
Insulation Material: Liquid Crystal Polymer (LCP)
Temperature Range: -55°C ~ 125°C
ECCN: EAR99
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
