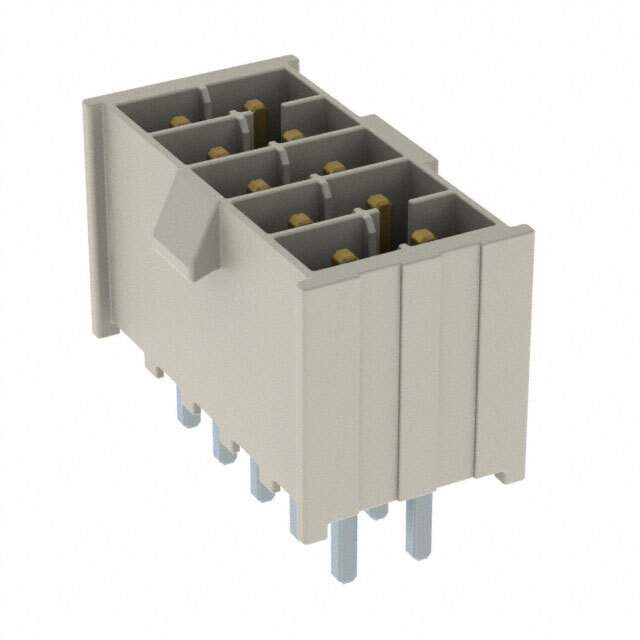

Same model may have multiple batches, images only for reference.

IPL1-105-01-S-D-K

Name: IPL1-105-01-S-D-K
Brand: Samtec Inc.
SKU: 921314
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	IPL1-105-01-S-D-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 10POS 2.54MM
Datasheet	IPL1-105-01-S-D-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors
Estimated Pruduction Lead Time	8 Weeks
Features	Connector Header Through Hole 10 position 0.100" (2.54mm)
Manufacturer	Samtec Inc.
Series	Mini Mate® IPL1
Package	Tube
Operating Temperature Range	-55°C ~ 125°C
Mounting	Through Hole
Family Name	IPL1-105
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	IPL1-105-01-S-D-K-ND, SAM10579
Quantity per package	1
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	921314-IPL1-105-01-S-D-K
Ultra Librarian 3D Model	Ultra Librarian IPL1-105-01-S-D-K CAD Model

Alternative Products

Description

The Samtec Inc. IPL1-105-01-S-D-K is a 10 position, 0.100" (2.54mm) connector header that is through-hole mountable.

Series: Mini Mate® IPL1 series
Packaging: tube
Supply and demand: balance
REACH: unaffected
ECCN: EAR99
Estimated production lead time: 8 weeks
