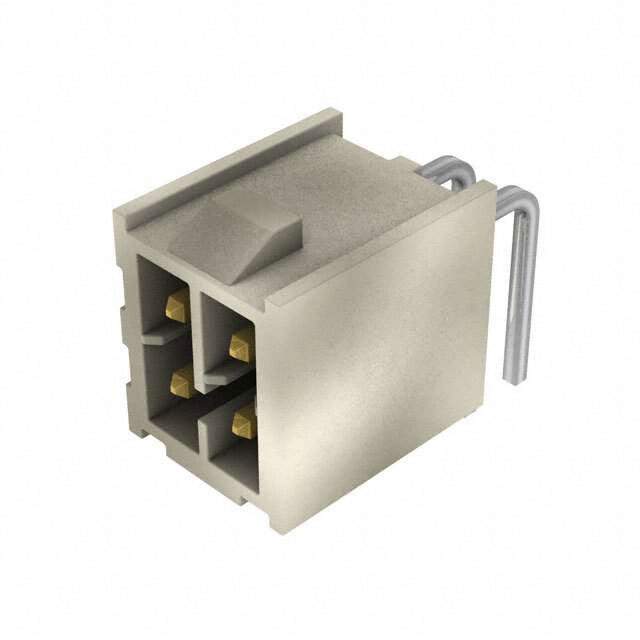

The Mini Mate® IPL1 series header connector is a 2-row, 4-position male pin connector designed for board-to-cable/wire applications.

• Rows: 2
• Positions: 4
• Gender: Male
• Application: Board-to-Cable/Wire
• Fastening Type: Locking Ramp
• Design: Shrouded 4-Wall
• Pitch: 0.100" (2.54mm)
• Termination: Solder
• Contact Material: Phosphor Bronze
• Insulation Material: Liquid Crystal Polymer (LCP)
• Voltage Rating: 675VAC and 954VDC
• Temperature Range: -55°C ~ 125°C
• Contact Finish on Mating: Gold with a thickness of 30.0µin (0.76µm)
• Contact Finish on Post: Tin
• Package: Tube
• Material Flammability Rating: UL94 V-0
• Alternative Parts: TLW-102-05-G-D, HTSW-102-07-G-D, TLW-102-06-G-D, 1-87215-1, 826632-2, and 10-89-7042IPL110201SDRAK
• MSL Level: 1 (unlimited)
