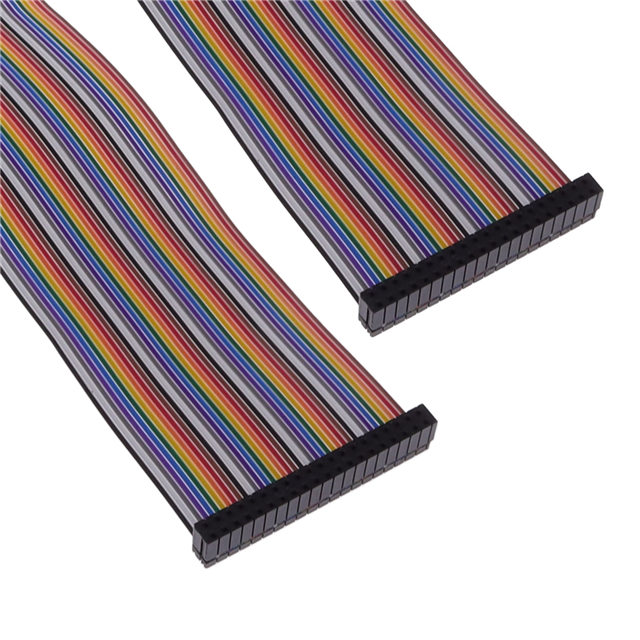

IDSD-20-D-12.00 Real Image
Same model may have multiple batches, images only for reference.

IDSD-20-D-12.00

Part No IDSD-20-D-12.00
Manufacturer Samtec Inc.
Catalog Rectangular Cable Assemblies
Description INSULATION DISPLACEMENT TERMINAL / 40 Position Cable Assembly Rectangular Socket to Socket 1.00' (304.80mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Rectangular Cable Assemblies
Mfr Samtec Inc.
Series IDSD
Package Bulk
Connector Type Socket to Socket
Number of Positions 40
Number of Rows 2
Pitch - Connector 0.100" (2.54mm)
Pitch - Cable 0.050" (1.27mm)
Length 1.00' (304.80mm)
Color Multiple, Ribbon
Shielding Unshielded
Cable Termination IDC
Contact Finish Gold
Base Product Number IDSD-20
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8544.42.9090
Standard Package 1
Win Source Part Number 1056291-IDSD-20-D-12.00
Ultra Librarian 3D Model Ultra Librarian IDSD-20-D-12.00 CAD Model

Description

The IDSD-20-D-12.00 Rectangular Cable Assembly is an excellent product for those looking for a cable assembly with multiple colors and ribbon.

  • Positions: 40.
  • Type: Socket to socket.
  • Contact Finish: Gold.
  • Package: Bulk.
  • Length: 1.00' (304.80mm).
  • Shielding: Unshielded.
  • Cable Termination: IDC.
  • Pitch - Connector: 0.100" (2.54mm).
  • Pitch - Cable: 0.050" (1.27mm).
  • Benefit: The IDSD-20-D-12.00 Rectangular Cable Assembly is an excellent product for those looking for a high-quality cable assembly with multiple features.
