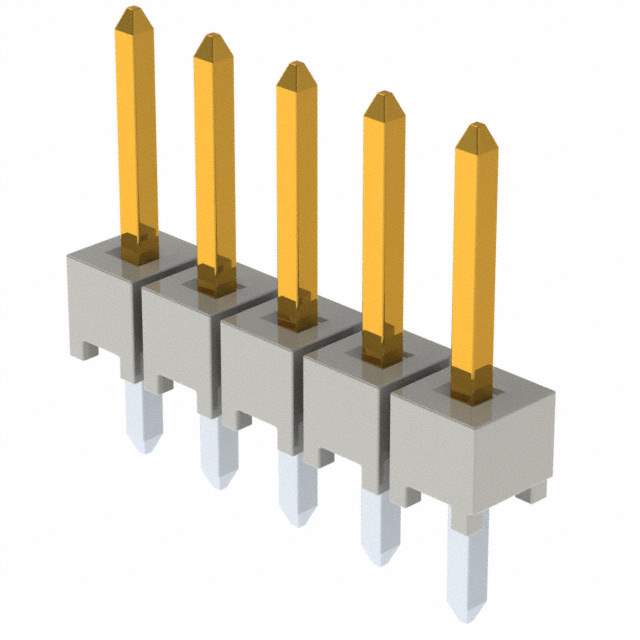

HTSW-105-07-F-S

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HTSW-105-07-F-S
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 5POS 2.54MM / Connector Header Through Hole 5 position 0.100" (2.54mm)
Datasheet	HTSW-105-07-F-S Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	HTSW
Package	Bag
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.230" (5.84mm)
Contact Length - Post	0.100" (2.54mm)
Overall Contact Length	0.430" (10.92mm)
Insulation Height	0.100" (2.54mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	Varies by Wire Gauge
Base Product Number	HTSW-105
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1013454-HTSW-105-07-F-S
Ultra Librarian 3D Model	Ultra Librarian HTSW-105-07-F-S CAD Model

Alternative Products

Description

The Samtec Inc. HTSW series is a 5-position, 1-row header connector designed for board-to-board or cable-to-board applications.

Manufacturer: Samtec Inc.
Series: HTSW
Positions: 5
Rows: 1
Application: Board-to-board or cable-to-board
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Material: Phosphor Bronze
Contact Plating: Gold
Pitch: 0.100" (2.54mm)
Contact Finish Thickness: 3.00µin (0.076µm)
Mounting Type: Through Hole
Fastening Type: Push-Pull
Flammability Rating: UL94 V-0
Temperature Range: -55°C ~ 125°C
