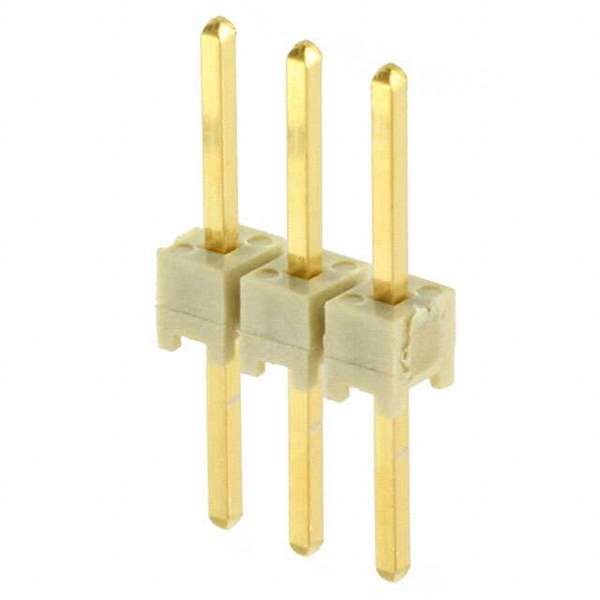

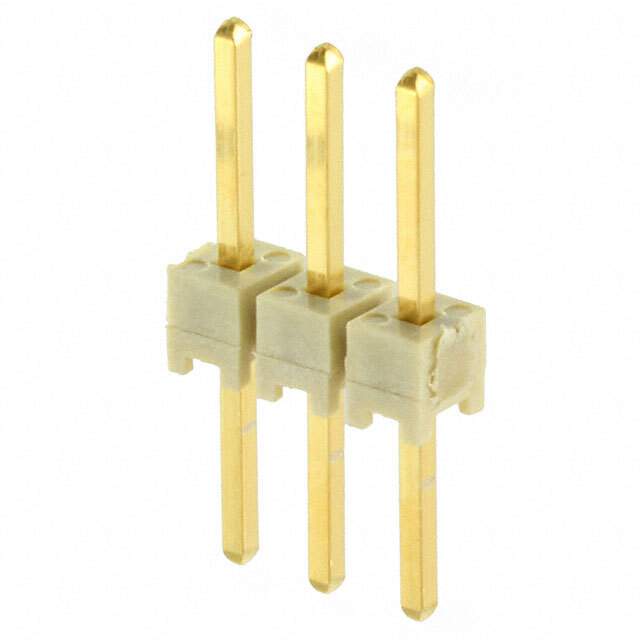

The HTSW series connector from Samtec Inc. is a header type connector with a push-pull fastening feature.

• This connector has 3 positions and 1 row, with all positions loaded with male pin contacts.
• The connector has a pitch of 0.100 inches (2.54mm) and a contact finish thickness of 10.0μin (0.25μm) for mating contacts and 3.00μin (0.076μm) for post contacts.
• The connector has an insulation height of 0.100 inches (2.54mm) and is made of liquid crystal polymer (LCP) insulation material.
• The connector is rated for an operating temperature range of -55°C to 125°C and has a current rating that varies by wire gauge.
• The connector is suitable for use in board-to-board or cable applications.
