Same model may have multiple batches, images only for reference.

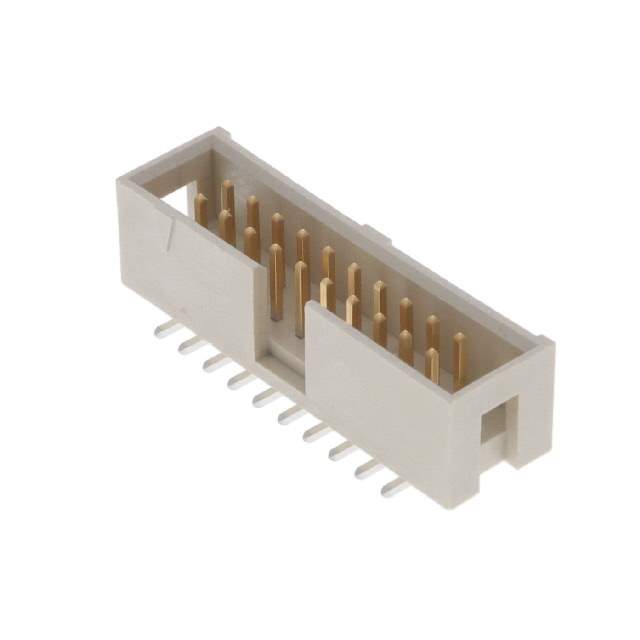

HTST-110-01-L-DV-P-TR Real Image
Same model may have multiple batches, images only for reference.

HTST-110-01-L-DV-P-TR

Part No HTST-110-01-L-DV-P-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 20POS 2.54MM / Connector Header Surface Mount 20 position 0.100" (2.54mm)
Datasheet
HTST-110-01-L-DV-P-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Flex Stack, HTST
Package Tape & Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.250" (6.35mm)
Insulation Height 0.350" (8.89mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot, Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3.4A per Contact
Base Product Number HTST-110
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM14032DKR,SAM14032CT,HTST-110-01-L-DV-P-TR-ND,SAM14032TR,HTST-110-01-L-DV-P-FR
Standard Package 150
Win Source Part Number 1000302-HTST-110-01-L-DV-P-TR
Ultra Librarian 3D Model Ultra Librarian HTST-110-01-L-DV-P-TR CAD Model

Description

The HTST-110-01-L-DV-P-TR is a high-performance connector manufactured by Samtec Inc.

  • Series: Flex Stack, HTST series
  • Positions: 20
  • Features: keying slot, pick and place
  • Connector Type: header connector with male pins
  • Supply and Demand Status: balanced
  • Applications: board to cable/wire connections
