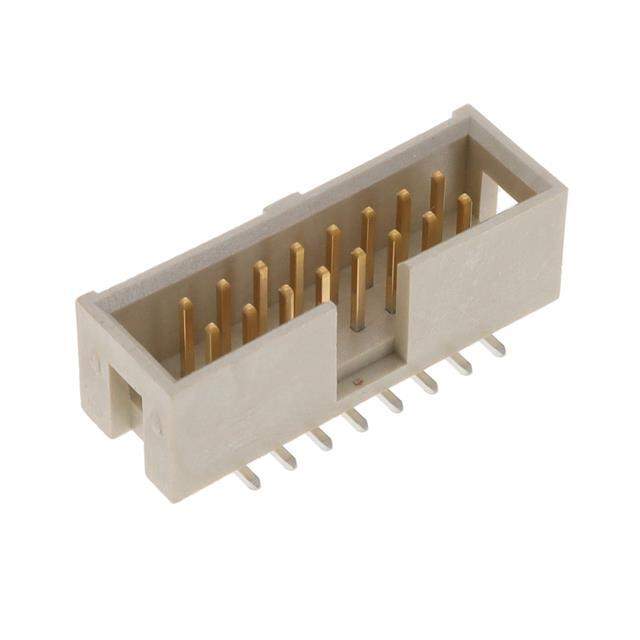

Same model may have multiple batches, images only for reference.

HTST-108-01-L-DV-TR

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HTST-108-01-L-DV-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 16POS 2.54MM / Connector Header Surface Mount 16 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, HTST
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	16
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Insulation Height	0.350" (8.89mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3.4A per Contact
Base Product Number	HTST-108
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	612-HTST-108-01-L-DV-TRCT,612-HTST-108-01-L-DV-TR,Q11577681,612-HTST-108-01-L-DV-TRDKR,HTST-108-01-L-DV-TR-ND,HTST-108-01-L-DV-TR-NDL
Standard Package	175
Win Source Part Number	986838-HTST-108-01-L-DV-TR
Ultra Librarian 3D Model	Ultra Librarian HTST-108-01-L-DV-TR CAD Model

Description

The Samtec Inc. 931350 is a rectangular connector header that is a part of the Flex Stack HTST series.

Manufacturer: Samtec Inc.
Series: Flex Stack HTST
Positions: 16
Keying Slot: Yes
Connector Type: Header
Contact Type: Male Pin
Loaded Positions: All positions
Rows: 2
Termination: Solder
Fastening Type: Push-Pull
Mounting Technology: Surface Mount
Pitch-Mating: 0.100 inches
Contact Finish-Mating: Gold
Contact Finish Thickness-Mating: 10.0 µin
Contact Finish-Post: Tin
Shrouding: Shrouded-4 Wall
Temperature Range: -55°C to 125°C
Current Rating: 3.4A per contact
