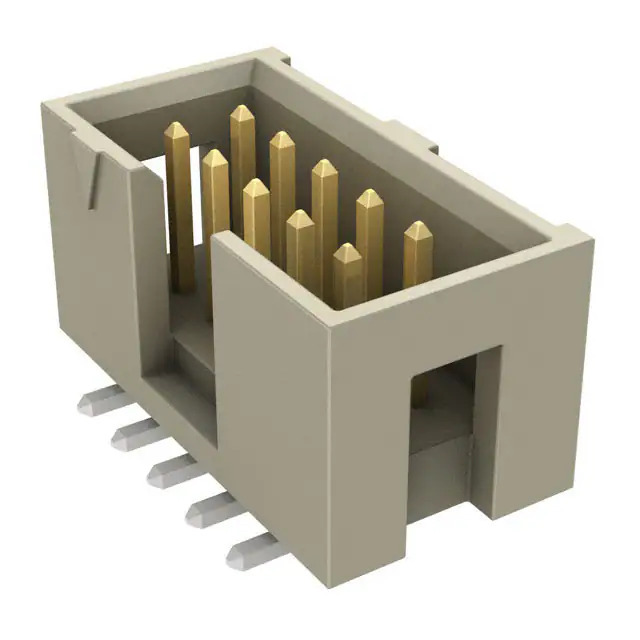

HTST-105-01-S-DV

Name: HTST-105-01-S-DV
Brand: Samtec Inc.
SKU: 1378599
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	HTST-105-01-S-DV
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 2.54MM
Datasheet	HTST-105-01-S-DV Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	Flex Stack, HTST
Package	Tube
Product Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.250" (6.35mm)
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.350" (8.89mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3.4A per Contact
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	HTST-105
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1378599-HTST-105-01-S-DV
Ultra Librarian 3D Model	Ultra Librarian HTST-105-01-S-DV CAD Model

Alternative Products

Description

The Samtec Inc. Flex Stack HTST-105-01-S-DV is a male pin header connector designed for board to cable/wire applications.

Pitch: 0.100" (2.54mm)
Positions: 10
Number of Rows: 2
Shrouded: Yes, 4 Walls
Current Rating: 3.4A per Contact
Temperature Range: -55°C to 125°C
Mounting Type: Surface Mount
Termination: Solder
Contact Finish (Mating Side): Gold (30.0µin / 0.76µm)
Contact Finish (Post Side): Tin
Contact Material: Phosphor Bronze
Insulation Material: Liquid Crystal Polymer (LCP)
Flammability Rating: UL94 V-0
Insulation Color: Natural
Product Status: Active
Series: Flex Stack HTST
