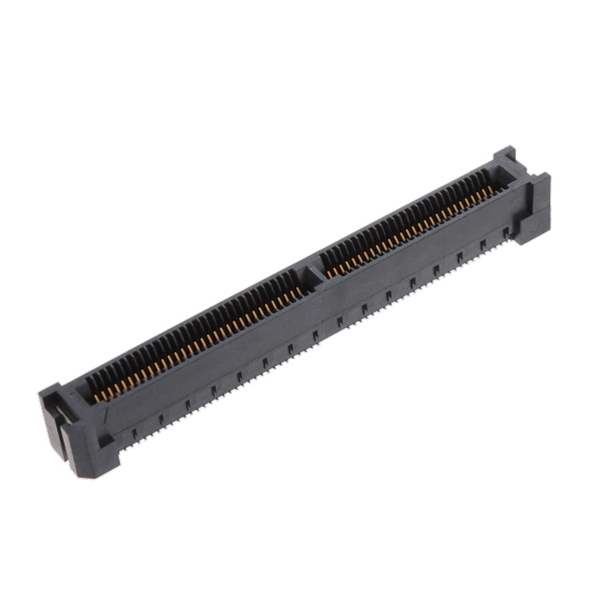

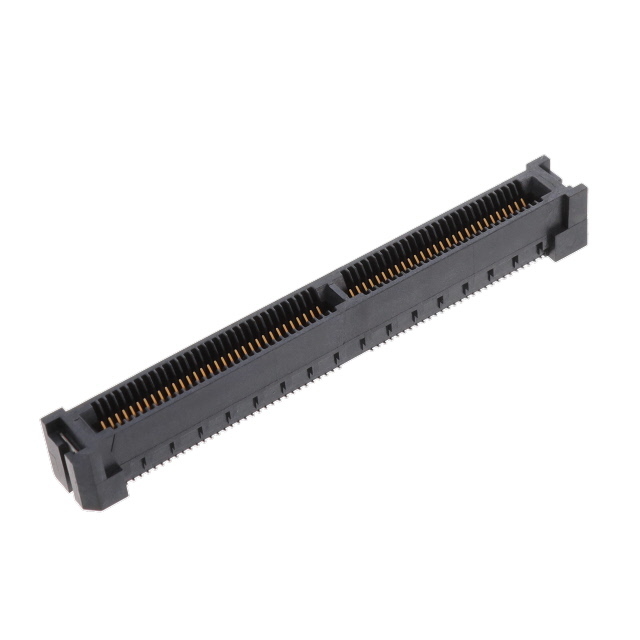

HSEC8-140-01-L-DV-A-BL-K-TR Samtec Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

HSEC8-140-01-L-DV-A-BL-K-TR

Part No HSEC8-140-01-L-DV-A-BL-K-TR
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 80POS 0.031
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 40
Number of Positions 80
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide, Board Lock
Mounting Type Surface Mount
Termination Solder
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 125°C
Package Tape & Reel
Supply and Demand Status Shortage
Win Source Part Number 1508137-HSEC8-140-01-L-DV-A-BL-K-TR
Ultra Librarian 3D Model Ultra Librarian HSEC8-140-01-L-DV-A-BL-K-TR CAD Model
