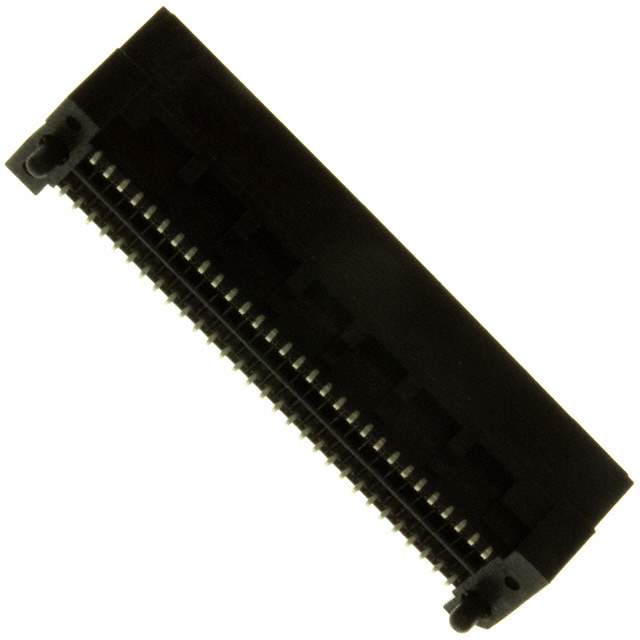

HSEC8-130-01-SM-DV-A Real Image
Same model may have multiple batches, images only for reference.

HSEC8-130-01-SM-DV-A

Part No HSEC8-130-01-SM-DV-A
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 60POS 0.031 / 60 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
Datasheet
HSEC8-130-01-SM-DV-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Card Edge Connectors - Edgeboard Connectors
Mfr Samtec Inc.
Series Edge Rate™ HSEC8
Package Tray
Card Type Non Specified - Dual Edge
Gender Female
Number of Positions/Bay/Row 30
Number of Positions 60
Card Thickness 0.062" (1.57mm)
Number of Rows 2
Pitch 0.031" (0.80mm)
Read Out Dual
Features Board Guide
Mounting SMD (SMT)
Termination Solder
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Contact Type Cantilever
Color Black
Temperature Range - Operating -55°C ~ 125°C
Material - Insulation Liquid Crystal Polymer (LCP)
Base Product Number HSEC8-130
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM8081,HSEC813001SMDVA
Standard Package 70
Win Source Part Number 1034715-HSEC8-130-01-SM-DV-A
Ultra Librarian 3D Model Ultra Librarian HSEC8-130-01-SM-DV-A CAD Model

Description

The Edge Rate™ HSEC8 card edge connector is a female cantilever type connector with 60 positions and a pitch of 0.031 inches (0.80mm).

  • Connector Type: Card Edge
  • Contact Gender: Female
  • Contact Type: Cantilever
  • Number of Positions: 60
  • Pitch: 0.031 inches (0.80mm)
  • Color: Black
  • Board Guide: Yes
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Contact Material: Beryllium copper
  • Insulation Material: Liquid crystal polymer (LCP)
  • Standard Package: 70
  • Mounting Type: SMD (SMT)
  • Card Type: Non-specified dual edge
  • Number of Positions/Bay/Row: 30
  • Card Thickness: 0.062 inches (1.57mm)
  • MSL Level: 1 (unlimited)
  • HTSUS: 8536.69.4040
  • Manufacturer: Samtec Inc.
  • Base Product Number: HSEC8-130
