Same model may have multiple batches, images only for reference.

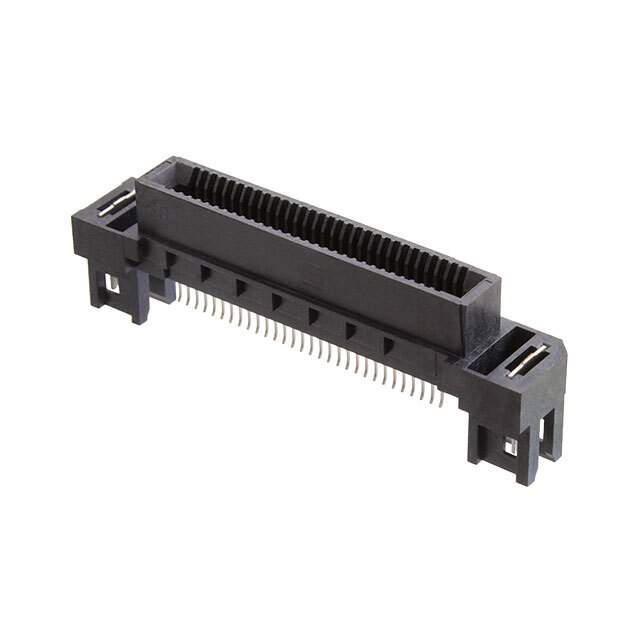

HSEC8-130-01-S-D-EM2 Real Image
Same model may have multiple batches, images only for reference.

HSEC8-130-01-S-D-EM2

Part No HSEC8-130-01-S-D-EM2
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 60POS 0.031
Datasheet
HSEC8-130-01-S-D-EM2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 8 Weeks
Features 60 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
Manufacturer Samtec Inc.
Series Edge Rate™ HSEC8
Package Tube
Operating Temperature Range -55°C ~ 125°C
Mounting Board Edge, Straddle Mount
Family Name HSEC8-130
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number HSEC8-130-01-S-D-EM2-ND, SAM11346
Quantity per package 1
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 873919-HSEC8-130-01-S-D-EM2
Ultra Librarian 3D Model Ultra Librarian HSEC8-130-01-S-D-EM2 CAD Model

Description

This 60-position female connector from Samtec Inc. is part of the Edge Rate™ HSEC8 series.

  • Positions: 60
  • Mounting: Board edge or straddle mount
  • Pitch: 0.031" (0.80mm)
  • Temperature Range: -55°C to 125°C
  • Package: Tube
  • Insulation Material: Not specified
  • Halogen-Free Compliance: Compliant
  • Current Rating: Not specified
  • Voltage Rating: Not specified
  • Supply and Demand Status: Limited
