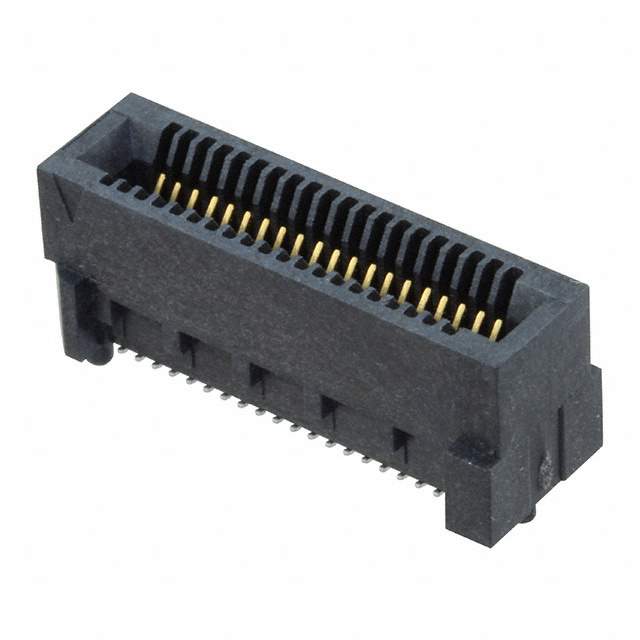

HSEC8-120-01-L-DV-A-K-TR Real Image
Same model may have multiple batches, images only for reference.

HSEC8-120-01-L-DV-A-K-TR

Part No HSEC8-120-01-L-DV-A-K-TR
Manufacturer Samtec Inc.
Catalog Card Edge Connectors - Edgeboard Connectors
Description CONN EDGE DUAL FMALE 40POS 0.031
Datasheet
HSEC8-120-01-L-DV-A-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 8 Weeks
Features 40 Position Female Connector Non Specified - Dual Edge Gold 0.031" (0.80mm) Black
Manufacturer Samtec Inc.
Series Edge Rate™ HSEC8
Package Reel - TR
Operating Temperature Range -55°C ~ 125°C
Mounting Surface Mount
Family Name HSEC8-120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number SAM13183CT, SAM13183DKR, SAM13183TR, HSEC8-120-01-L-DV-A-K-TR-ND
Quantity per package 275
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 873917-HSEC8-120-01-L-DV-A-K-TR
Ultra Librarian 3D Model Ultra Librarian HSEC8-120-01-L-DV-A-K-TR CAD Model

Description

The 873917-HSEC8-120-01-L-DV-A-K-TR is a connector product that belongs to the Edge Rate™ HSEC8 series and is from Samtec Inc..

  • Connector Type: Female connector
  • Positions: 40
  • Specification: Non-specified
  • Contact Plating: Dual edge gold 0.031" (0.80mm) black
  • Package Type: Reel - TR
  • Family Name: HSEC8-120
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Estimated Production Lead Time: 8 weeks
  • MSL Level: 1 (unlimited)
  • Quantity per Package: 275
  • Other Part Numbers: SAM13183CT, SAM13183DKR, SAM13183TR, and HSEC8-120-01-L-DV-A-K-TR-ND
