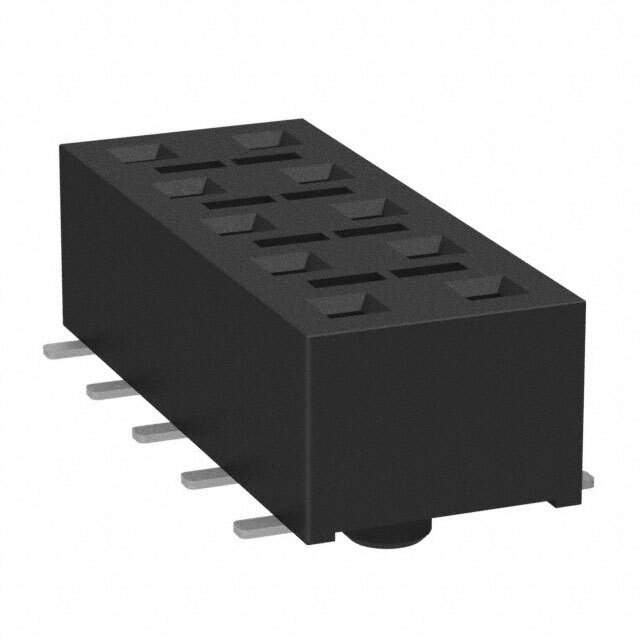

HLE-105-02-L-DV-A

Name: HLE-105-02-L-DV-A
Brand: Samtec Inc.
SKU: 776036
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HLE-105-02-L-DV-A
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	.100 TIGER BEAM SOCKET ASSEMBLY / Conn Socket Strip SKT 10 POS 2.54mm Solder ST SMD Tube
Datasheet	HLE-105-02-L-DV-A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Samtec Inc.
Series	HLE
Packaging	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	10
Number of Positions Loaded	All
Pitch - Mating	0.100" (2.54mm)
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10μin (0.25μm)
Insulation Color	Black
Insulation Height	0.144" (3.66mm)
Operating Temperature Range	-55°C ~ 125°C
Contact Finish - Post	Tin
Features	Board Guide
Current Rating	4.1A per Contact
Voltage Rating	400VAC
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Beryllium Copper
Win Source Part Number	776036-HLE-105-02-L-DV-A
Popularity	Medium
Supply and Demand Status	Limited
Family Name	HLE
Introduction Date	October 07, 2003
ECCN	EAR99
Country of Origin	China, Costa Rica, Malaysia, Singapore, Taiwan, United States of America, Vietnam
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian HLE-105-02-L-DV-A CAD Model

Alternative Products

Description

The Samtec HLE series connector is a board-to-board receptacle connector with a push-pull fastening type.

Positions: 10 (loaded with female sockets)
Packaging: Tube
Pitch: 0.100" (2.54mm)
Voltage Rating: 400VAC
Current Rating: 4.1A per contact
Material: Beryllium Copper
Insulation: Liquid Crystal Polymer (LCP)
Temperature Range: -55°C to 125°C
RoHS: Compliant
Insulation Color: Black
Country of Origin: China, Costa Rica, Malaysia, Singapore, Taiwan, the USA, and Vietnam
