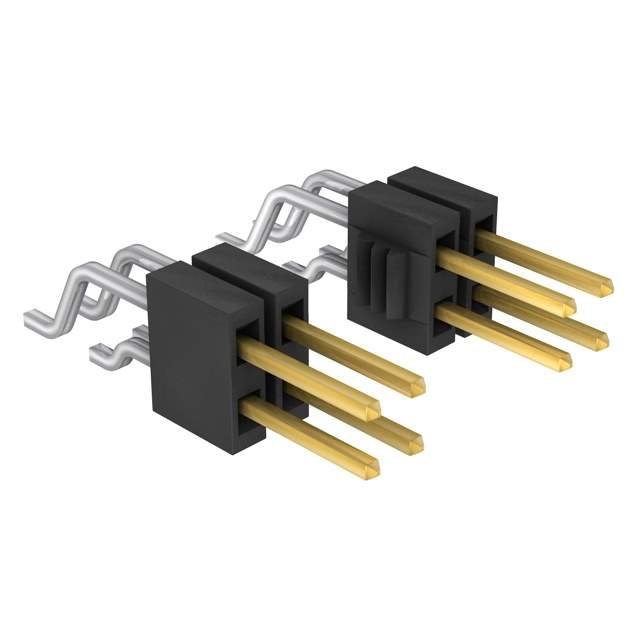

Same model may have multiple batches, images only for reference.

FTSH-110-02-L-DH

Name: FTSH-110-02-L-DH
Brand: Samtec Inc.
SKU: 972824
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTSH-110-02-L-DH
Manufacturer	Samtec Inc.
Catalog	Circular Connectors - Housings
Description	CONN HEADER SMD R/A 20POS 1.27MM / Connector Header Surface Mount, Right Angle 20 position 0.050" (1.27mm)
Datasheet	FTSH-110-02-L-DH Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTSH
Package	Tube
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.075" (1.90mm)
Insulation Height	0.135" (3.43mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	FTSH-110
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM11273,FTSH-110-02-L-DH-ND
Standard Package	46
Win Source Part Number	972824-FTSH-110-02-L-DH
Ultra Librarian 3D Model	Ultra Librarian FTSH-110-02-L-DH CAD Model

Alternative Products

Description

The Samtec Inc. FTSH series is a rectangular connector with a header, cuttable connector type.

Connector Type: Header, cuttable
Positions Loaded: 20
Number of Rows: 2
Pitch: 0.050 inches (1.27mm)
Contact Type: Male pin
Termination: Solder
Fastening Type: Push-pull
Package: Tube
Contact Material: Phosphor bronze
Contact Finish: Gold with a thickness of 10.0μin (0.25μm) for mating and tin for post
Insulation Material: Liquid crystal polymer (LCP)
Insulation Color: Black
Suitable For: Board-to-board or cable style
Mounting Type: Surface mount, right angle
Operating Temperature: -55°C to 125°C
